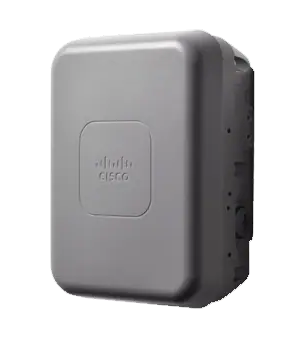

Cisco Aironet 1562D Outdoor Access Point
Dual-band 802.11a/g/n/ac, Wave 2, internal directional antennas

Cisco Aironet 1562D Outdoor Access Point

Notice: Discontinued Product

This unit has been discontinued and is no longer available for purchase. We encourage you to check out our Cisco Catalyst 9124AX Series Access Points.

End of Sale (EOL): January 31, 2023

End of Support (EOS): January 31, 2028

For customers with active and paid service and support contracts, support will be available under the terms and conditions of customers' service contract.

Overview:

Support 802.11ac Wave 2 in outdoor networks

Cisco Aironet 1560 Series Outdoor Access Points offer the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily.

Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco® wireless innovations such as:

Cisco CleanAir technology for spectrum intelligence
Cisco ClientLink technology for beamforming
Radio Resource Management (RRM) for dynamic transmitter channel and power control

Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.

Extends your Wave 2 network

Business doesn’t end when you leave your office. Stay connected everywhere and improve the performance of many client devices.

Improves efficiency with HDX

Cisco High Density Experience (HDX) comes standard. HDX gives the 1560 Series top-of-the-line network efficiency for a large number of wireless clients. It is built for best-in-class RF architecture and targets high-density networks.

Offers flexible deployment modes

The 1560 Series supports controller-based deployments for large networks and virtual controller-based solutions such as Cisco Mobility Express, which is perfect for any small to medium-sized network.

Scales more and performs better

The Aironet 1560 Series access points double the scale of 5-GHz mobile devices and raise the performance of high-density environments.

Get assured wireless performance and location services

Cisco DNA software subscriptions provide analytics and assurance powered by AI/ML, for easy troubleshooting and management of your wireless network. Cisco DNA Spaces provides insights about people and assets on your premises and can help inform business decisions.

Features and Benefits:

Feature	Benefit
802.11ac Wave 2 radio	Provides up to 1.3-Gbps data rates with 3 x 3 Multiple Input, Multiple Output (MIMO) and up to three spatial streams
Multiuser MIMO (MU-MIMO)	Allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience; prior to 802.11ac Wave 2, access points could transmit data to only one client at a time, typically referred to as single-user MIMO
Flexible deployment modes	Allows for deployment of the 1560 in a variety of ways including point -to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal f or small to medium -sized deployments that supports multiple access points without a physical controller; all deployment modes are easy to set up and configure
Small Form-Factor Pluggable (SFP) port	Supports optical fiber-based network connectivity for remote locations

Prominent Feature/Differentiator/Capability

The Cisco Aironet 1560 Series offers the following features:

Improved performance for multiple client devices: The 802.11ac Wave 2 access points use MU-MIMO technology, which allows different data streams to all flow at once from the access point to multiple 802.11ac Wave 2-supported devices. Now, multiple 802.11ac Wave 2 devices can connect at the same time, getting the information they need quicker.
5-GHz support: The Cisco Aironet 1560 Series doubles the scale of 5 -GHz mobile devices and raises the performance of high-density environments.
4G LTE Coexistence: The Cisco Aironet 1560 Series includes robust filtering around the 2.4 GHz unlicensed band to block out nearby licensed 4G LTE cellular signals.
Cisco Flexible Antenna Port technology uses software configurable for either single- or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimize radio coverage.
Cisco Mobility Express: This solution is designed to bring enterprise-class wireless access to small and medium-sized networks. Easy to set up with low maintenance, Mobility Express includes advanced features from Cisco and does not require a physical controller appliance.
Cisco High Density Experience (HDX): Cisco HDX comes standard on the 1560, giving this access point top-of-the-line network efficiency over a large number of wireless clients. HDX uses customized chipsets to target the needs of high-density networks. It is built with best-in-class RF architecture and gives a better user experience for high-performance applications.

Technical Specifications:

Item	Specification
802.11ac Wave 1 and 2 capabilities	1562I: 3 x 3 MIMO with three spatial streams 1562E/D 2 x 2 MIMO with two spatial streams Multi- and single-user MIMO Maximal Ratio Combining (MRC) 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic-Shift-Diversity (CSD) support
802.11n (and related) capabilities	1562I: 3 x 3 MIMO with three spatial streams 1562E/D: 2 x 2 MIMO with two spatial streams MRC 20- and 40-MHz channels PHY data rates up to 450 Mbps Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) 802.11 DFS CSD support
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 and 5 GHz:
	MCS Index	GI = 800 ns				GI = 400 ns
	MCS Index	20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		20-MHz Rate (Mbps)		40-MHz Rate (Mbps)
	0	6.5		13.5		7.2		15
	1	13		27		14.4		30
	2	19.5		40.5		21.7		45
	3	26		54		28.9		60
	4	39		81		43.3		90
	5	52		108		57.8		120
	6	58.5		121.5		65		135
	7	65		135		72.2		150
	8	13		27		14.4		30
	9	26		54		28.9		60
	10	39		81		43.3		90
	11	52		108		57.8		120
	12	78		162		86.7		180
	13	104		216		115.6		240
	14	117		243		130		270
	15	130		270		144.4		300
	16	19.5		40.5		21.7		45
	17	39		81		43.3		90
	18	58.5		121.5		65		135
	19	78		162		86.7		180
	20	117		243		130		270
	21	156		324		173.3		360
	22	175.5		364.5		195		405
	23	195		405		216.7		450
	802.11ac Data Rates (5 GHz)
	MCS Index	Spatial Streams	GI = 800 ns				GI = 400 ns
	MCS Index	Spatial Streams	20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)		20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)
	0	1	6.5	13.5	29.3		7.2	15	32.5
	1	1	13	27	58.5		14.4	30	65
	2	1	19.5	40.5	87.8		21.7	45	97.5
	3	1	26	54	117		28.9	60	130
	4	1	39	81	175.5		43.3	90	195
	5	1	52	108	234		57.8	120	260
	6	1	58.5	121.5	263.3		65	135	292.5
	7	1	65	135	292.5		72.2	150	325
	8	1	78	162	351		86.7	180	390
	9	1	–	180	390		–	200	433.3
	0	2	13	27	58.5		14.4	30	65
	1	2	26	54	117		28.9	60	130
	2	2	39	81	175.5		43.3	90	195
	3	2	52	108	234		57.8	120	260
	4	2	78	162	351		86.7	180	390
	5	2	104	216	468		115.6	240	520
	6	2	117	243	526.5		130	270	585
	7	2	130	270	585		144.4	300	650
	8	2	156	324	702		173.3	360	780
	9	2	–	360	780		–	400	866.7
	0	3	19.5	40.5	87.8		21.7	45	97.5
	1	3	39	81	175.5		43.3	90	195
	2	3	58.5	121.5	263.3		65	135	292.5
	3	3	78	162	351		86.7	180	390
	4	3	117	243	526.5		130	270	585
	5	3	156	324	702		173.3	360	780
	6	3	175.5	364.5	-		195	405	-
	7	3	195	450	877.5		216.7	450	975
	8	3	234	486	1053		260	540	1170
	9	3	260	540	1170		288.9	600	1300
Maximum number of non-overlapping channels	A (A regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels B (B regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.180 to 5.240 GHz, 4 channels 5.260 to 5.320 GHz, 4 channels 5.500 to 5.720 GHz, 12 channels 5.745 to 5.825 GHz, 5 channels C (C regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels D (D regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.745 to 5.865 GHz, 7 channels E (E regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels F (F regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.745 to 5.805 GHz, 4 channels G (G regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels H (H regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels I (I regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.180 to 5.320 GHz, 8 channels				K (K regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.805 GHz, 4 channels L (L regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.865 GHz, 7 channels M (M regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.805 GHz, 4 channels N (N regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels Q (Q regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.500 to 5.700 GHz, 11 channels R (R regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.260 to 5.320 GHz, 4 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels S (S regulatory domain): 2.412 to 2.472 GHz, 13 channels 5.500 to 5.700 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels T (T regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels Z (Z regulatory domain): 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Number of Non-overlapping Channels	2.4 GHz 802.11b/g: 20 MHz: 3 802.11n: 20 MHz: 3 40 MHz: 1 (hardware capable)					5 GHz 802.11a: 20 MHz: 27 802.11n: 20 MHz: 27 40 MHz: 13 802.11ac: 20 MHz: 27 40 MHz: 13 80 MHz: 6
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Maximum conducted transmit power	1562I 2.4 GHz: 29 dBm with 3 antennas 5 GHz: 29 dBm with 3 antennas			1562D 2.4 GHz: 27 dBm with 2 antennas 5 GHz: 27 dBm with 2 antennas			1562E 2.4 GHz: 27 dBm with 2 antennas 5 GHz: 27 dBm with 2 antennas
Interface	WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in SFP port (fiber or electrical) Management console port (RJ-45) Multicolor LED DC power input Reset button
Uplink options	Ethernet, SFP, and wireless mesh
Dimensions (W x L x H)	1562I: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm) 1562D: 9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm) 1562E:: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
Weight	1562I: 5.6 lb (2.5 kg) 1562D: 5.7 lb (2.6 kg) 1562E: 5.6 lb (2.5 kg)
Environmental	Operating temperature -40 to 65°C (-40 to 149°F) ambient air with no solar loading -40 to 55°C (-40 to 131°F) ambient air with solar loading 743W/m2 (details in HW installation guide) Storage temperature: -50 to 70°C (-58 to 158°F) Humidity: 5 - 95%, non-condensing Wind resistance: Up to 100-MPH sustained winds Up to 165-MPH wind gusts
Environmental Ratings	IEC 60529 IP67 NEMA Type 4X Icing protection: NEMA 250-2008 Corrosion: NEMA 250-2008 (600 hours) Solar radiation: EN 60068-2-5 (1200 W/ m2) Vibration: MIL-STD-810
Antennas	Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz) Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz) Dual-Band AIR-ANT2568VG-N 6 dBi (2.4 GHz), 8 dBi (5 GHz) Omni AIR-ANT2547VG-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni AIR-ANT2547V-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni AIR-ANT2588P3M-N= 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional AIR-ANT2513P4M-N= 13 dBi (2.4 GHz), 13 dBi (5 GHz) Directional Single Band 2.4 GHz AIR-ANT2450V-N= 5 dBi (2.4 GHz), Omni AIR-ANT2450VG-N= 5 dBi (2.4 GHz), Omni, vertical polarized AIR-ANT2450HG-N= 5 dBi (2.4 GHz), Omni, horizontal polarized AIR-ANT2480V-N= 8 dBi (2.4 GHz), Omni AIR-ANT2413P2M-N= 13 dBi (2.4 GHz), Directional, dual polarized 5 GHz AIR-ANT5150VG-N= 5 dBi (5GHz), Omni, vertical polarized AIR-ANT5150HG-N= 5 dBi (5GHz), Omni, horizontal polarized AIR-ANT5180V-N= 8 dBi (5GHz), Omni AIR-ANT5114P2M-N= 14 dBi (5GHz), Directional, dual polarized
Powering options	1572EAC AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter) 44–57 VDC input Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at Cisco power injectors: AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug) AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable) AIR-PWRINJ6= (indoor, 802.3at) Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.
Power draw	1562I: 32 W (3x3:3, full power) 1562D/E: 25 W
Physical security	Included with the access point: mounting bracket AIR-AP-BRACKET-NS or AIR-MOD-AC-XX
Compliance	Safety UL60950, 2nd Edition CAN/CSA-C22.2 No. 60950, 2 nd Edition IEC 60950, 2nd Edition EN 60950, 2nd Edition Immunity <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform ANSI/IEEE C62.41 EN61000-4-5 Level 4 AC Surge Immunity EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity EN61000-4-3 Level 4 EMC Field Immunity EN61000-4-2 Level 4 ESD Immunity EN60950 Overvoltage Category IV Radio approvals FCC Part 15.247, 15.407 FCC Bulletin OET-65C RSS-247 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 EMI and susceptibility FCC part 15.107, 15.109 ICES-003 EN 301 489-1, -17 Security Wireless bridging/mesh (future availability) X.509 digital certificates MAC address authentication Adv anced Encryption Standard (AES) Wireless Access 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module - (EAP-SIM), and Cisco LEAP VPN pass-through IP Security (IPsec) Layer 2 Tunneling Protocol (L2TP) MAC address filtering
Warranty	1-year limited hardware warranty

Transmit Power and Receive Sensitivity:

		2.4 GHz Radio		5 GHz Radio
	Spatial streams	1562I	1562D/E	1562I	1562D/E
802.11/11b
1 Mbps	1	-100	-98	NA	NA
11 Mbps	1	-88	-87	NA	NA
802.11a/g
6 Mbps	1	-92	-90	-94	-93
24 Mbps	1	-86	-83	-89	-88
54 Mbps	1	-76	-74	-80	-79
802.11n HT20
MCS0	1	-90	-89	-91	-90
MCS4	1	-84	-82	-88	-86
MCS7	1	-77	-75	-80	-78
MCS8	2	-89	-88	-90	-89
MCS12	2	-82	-80	-85	-83
MCS15	2	-75	-72	-78	-76
MCS16	3	-89		-90
MCS20	3	-81		-84
MCS23	3	-73		-76
802.11n HT40
MCS0	1	-88	-86	-90	-90
MCS4	1	-82	-80	-85	-83
MCS7	1	-75	-74	-78	-76
MCS8	2	-87	-86	-90	-90
MCS12	2	-80	-78	-82	-81
MCS15	2	-72	-70	-75	-73
MCS16	3	-87		-90
MCS20	3	-78		-81
MCS23	3	-71		-74
802.11ac VHT20
MCS0	1			-95	-94
MCS4	1			-88	-86
MCS7	1			-81	-79
MCS8	1			-77	-75
MCS0	2			-94	-93
MCS4	2			-86	-84
MCS7	2			-78	-76
MCS8	2			-74	-72
MCS0	3			-93
MCS4	3			-85
MCS7	3			-78
MCS8	3			-72
MCS9	3			-69
802.11ac VHT40
MCS0	1			-91	-90
MCS4	1			-85	-84
MCS7	1			-79	-77
MCS8	1			-75	-73
MCS9	1			-73	-71
MCS0	2			-91	-90
MCS4	2			-83	-82
MCS7	2			-76	-74
MCS8	2			-73	-70
MCS9	2			-71	-68
MCS0	3			-91
MCS4	3			-82
MCS7	3			-74
MCS8	3			-69
MCS9	3			-68
802.11ac VHT80
MCS0	1			-88	-88
MCS4	1			-83	-81
MCS7	1			-75	-73
MCS8	1			-71	-69
MCS9	1			-69	-67
MCS0	2			-88	-88
MCS4	2			-80	-78
MCS7	2			-73	-71
MCS8	2			-69	-67
MCS9	2			-67	-65
MCS0	3			-88
MCS4	3			-78
MCS7	3			-71
MCS8	3			-67
MCS9	3			-65

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Documentation:

Download the Cisco Aironet 1560 Series Outdoor Access Point Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
