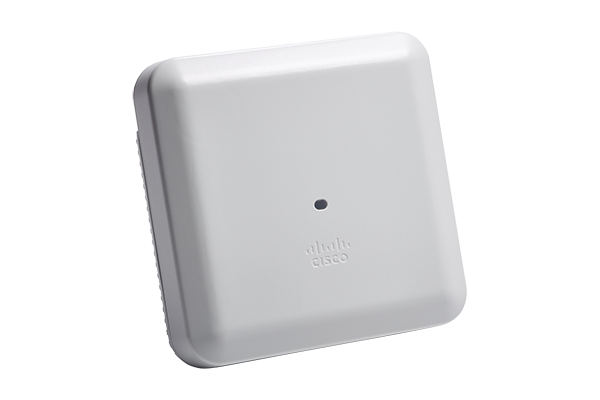

Cisco Aironet 2800i Access Points
Support Wave 2 in mission-critical networks
Notice: Discontinued Product
This unit has been discontinued and is no longer available for purchase. We encourage you to check out our Cisco Catalyst 9100 Access Points.
End of Sale (EOL): October 31, 2022
End of Support (EOS): October 31, 2027
For customers with active and paid service and support contracts, support will be available under the terms and conditions of customers' service contract.
Overview:
The Cisco® Aironet® 2800 Series Wi-Fi access points are highly versatile and deliver the most functionality in the industry.
For organizations paving the way for the new 802.11ac Wave 2 standard, the Cisco Aironet 2800 Series is the perfect solution. The access points go beyond getting ready for the new standard, providing the ultimate in flexibility and versatility.
For large enterprise organizations that rely on Wi-Fi to engage with customers, the 2800 Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. This automation allows you to devote time to other pressing matters, secure in the knowledge that your Wi-Fi network is performing to its utmost potential.
The Aironet 2800 Series is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments.
Features and Benefits:
Feature |
Benefit |
802.11ac Wave 2 support |
Provides a theoretical connection rate of up to 2.6 Gbps per radio—roughly double the rates offered by today’s high-end 802.11ac access points. |
High Density Experience (HDX) |
Best-in-class RF architecture, which provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. HDX includes features such as custom hardware in 802.11ac Wave 2 radios, Cisco CleanAir®, ClientLink 4.0, cross-access point noise reduction, and an optimized client roaming experience. |
Multiuser Multiple-Input Multiple-Output (MU‑MIMO) technology |
Supporting three spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput. |
Flexible Radio Assignment |
Allows the access points to intelligently determine the operating mode of serving radios based on the RF environment. The access points can operate in the following modes: ● 2.4-GHz and 5-GHz mode: One radio will serve clients in 2.4-GHz mode, while the other serves clients in 5-GHz mode.
● Dual 5-GHz mode: Both radios inside the access point operate on the 5-GHz band, maximizing the benefits of 802.11ac Wave 2 and increasing client device capacity.
● Security Monitoring and 5-GHz mode, One radio will serve 5-GHz clients, while the other is scanning the full spectrum for wIPS attackers, CleanAir interferers, and rogue devices. |
Dual 5-GHz radio support |
Enables both radios to operate in 5-GHz client serving mode, allowing an industry-leading 5.2 Gbps (2 x 2.6 Gbps) over-the-air speeds while increasing client capacity. |
Smart antenna connector |
An intelligent second physical antenna connector is included on 2800 Series models with an external antenna. This connector provides advanced network design flexibility for high-density and large open-area environments such as auditoriums, convention centers, libraries, cafeterias, and arenas/stadiums, allowing two sets of antennas to be connected and active on a single access point. |
160-MHz channel support |
Supporting channels up to 160 MHz wide, Dynamic Bandwidth Selection allows the access point to dynamically switch between 20-, 40-, 80-, and 160-MHz channels, depending on the RF channel conditions, providing the industry’s best-performing wireless network. |
Optimized access point roaming |
Helps ensure that client devices associate with the access point in their coverage range that offers the fastest data rate available. |
Zero Impact Application Visibility and Control* |
Uses dedicated hardware acceleration to improve the performance of line-speed applications such as Application Visibility and Control. |
Auto Link Aggregation (LAG) support |
802.3ad (LACP) compliant, allowing both Gigabit Ethernet interfaces to automatically LAG, increasing overall throughput to the access point. |
ClientLink 4.0 |
Cisco ClientLink 4.0 technology to improve downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11a/b/g/n/ac while improving battery life on mobile devices such as smartphones and tablets. |
CleanAir 160 MHz* |
Cisco CleanAir technology, enhanced with 160-MHz channel support, provides proactive, high-speed spectrum intelligence across 20-, 40-, 80-, or 160-MHz-wide channels to combat performance problems due to wireless interference. |
Cisco Mobility Express |
Flexible deployment mode through the Cisco Mobility Express Solution is ideal for medium-sized deployments and can support up to 100 access points. Easy setup allows the 2800 Series Access Points to be deployed on networks without a physical controller. |
802.11ac Wave 2 and beyond
The Aironet 2800 Series extends 802.11ac speed and features to a new generation of smartphones, tablets, and high-performance laptops, providing a greater end-user experience. Whether your project involves wholesale changes to your current wireless network or upgrading your legacy Wi-Fi deployments (802.11a/b/g/n/ac wave 1 deployments), the 2800 Series can handle the job.
The 2800 Series supports 802.11ac Wave 2, providing a theoretical connection rate of up to 5.2 Gbps—that’s roughly 4x the rates offered by today’s high-end 802.11ac access points. The boost helps you stay ahead of the performance and bandwidth expectations of today’s mobile worker, who usually uses multiple Wi-Fi devices instead of just one. As such, users are adding proportionally larger traffic loads to the wireless LAN, which has outpaced Ethernet as the default enterprise access network.
Cisco DNA support
Pairing the 2800 Series access points with the Cisco Digital Network Architecture (Cisco DNA™) allows for a total network transformation. Cisco DNA allows you to truly understand your network with real-time analytics, quickly detect and contain security threats, and easily provide networkwide consistency through automation and virtualization. By decoupling network functions from the hardware, you can build and manage your entire wired and wireless network from a single user interface
Working together, the 2800 Series and DNA offer such features as:
- Flexible Radio Assignment
- Cisco Connected Mobile Experiences
- Cisco High Density Experience
- Apple FastLane
- Cisco Identity Services Engine
- And much more
The result? Your network stays relevant, becomes digital-ready, and is the lifeblood of your organization.
Technical Specifications:
Item |
Specification |
||||||
Part numbers |
Cisco Aironet 2800i Access Point: Indoor environments, with internal antennas ● AIR-AP2802I-x-K9: Dual-band, controller-based 802.11a/g/n/ac
● AIR-AP2802I-xK910: Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points
● AIR-AP2802I-D-K9I: Dual-band, controller-based 802.11a/g/n/ac (India only)
Cisco Aironet 2800i Access Point Configurable: Indoor environments, with internal antennas ● AIR-AP2802I-x-K9C: Dual-band, controller-based 802.11a/g/n/ac, configurable
● AIR-AP2802I-xK910C: Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable
Cisco Aironet 2800e Access Point: Indoor, challenging environments, with external antennas ● AIR-AP2802E-x-K9: Dual-band controller-based 802.11a/g/n/ac
● AIR-AP2802E-xK910: Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points
Cisco Aironet 2800e Access Point Configurable: Indoor, challenging environments, with external antennas ● AIR-AP2802E-x-K9C: Dual-band controller-based 802.11a/g/n/ac, configurable
● AIR-AP2802E-xK910C: Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
||||||
Software |
● Cisco Unified Wireless Network Software Release 8.2.111.0 or later
● Cisco IOS® XE Software Release 16.3 |
||||||
Supported wireless LAN controllers |
● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
● Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
● Cisco Mobility Express |
||||||
802.11n version 2.0 (and related) capabilities |
● 4x4 MIMO with three spatial streams
● Maximal Ratio Combining (MRC)
● 802.11n and 802.11a/g beamforming
● 20- and 40-MHz channels
● PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support |
||||||
802.11ac Wave 1 capabilities |
● 4x4 MIMO with three spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, and 80-MHz channels
● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 DFS
● CSD support |
||||||
802.11ac Wave 2 capabilities |
● 4x4 MU-MIMO with three spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, 80, 160-MHz channels
● PHY data rates up to 5.2 Gbps
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 DFS
● CSD support |
||||||
Integrated antenna |
Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°
Dedicated 5-GHz radio ● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
||||||
External antenna (sold separately) |
● 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios |
||||||
Smart antenna connector |
● Available on the 2802e Series access points only
● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point
● Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
||||||
Interfaces |
● 2802I/E
◦ 2x100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
● USB 2.0 (enabled via future software) |
||||||
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
||||||
Dimensions (W x L x H) |
● Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50” |
||||||
Weight |
Cisco Aironet 2802i ● 3.53 lb (1.6 kg)
Cisco Aironet 2802e ● 4.6 lb (2.09 kg) |
||||||
Input power requirements |
● 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®)
● 802.3at power injector (AIR-PWRINJ6=) |
||||||
Power draw |
● 22.5W at the PSE (20W at the PD) with all features enabled except for the USB 2.0 port
● 26.5W at the PSE (23W at the PD) with the USB 2.0 port enabled |
||||||
Environmental |
Cisco Aironet 2802i ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: 32° to 104°F (0° to 40°C)
● Operating humidity: 10% to 90% (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.
Cisco Aironet 2802e ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: -4° to 122°F (-20° to 50°C)
● Operating humidity: 10% to 90% (noncondensing)
● Operating altitude test: 40˚C, 9843 ft. |
||||||
System memory |
● 1024 MB DRAM
● 256 MB flash |
||||||
Warranty |
Limited lifetime hardware warranty |
||||||
Available transmit power settings |
2.4 GHz ● 23 dBm (200 mW)
● 20 dBm (100 mW)
● 17 dBm (50 mW)
● 14 dBm (25 mW)
● 11 dBm (12.5 mW)
● 8 dBm (6.25 mW)
● 5 dBm (3.13 mW)
● 2 dBm (1.56 mW) |
5 GHz ● 23 dBm (200 mW)
● 20 dBm (100 mW)
● 17 dBm (50 mW)
● 14 dBm (25 mW)
● 11 dBm (12.5 mW)
● 8 dBm (6.25 mW)
● 5 dBm (3.13 mW)
● 2 dBm (1.56 mW) |
|||||
Frequency band and 20-MHz operating channels |
A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.720 GHz; 12 channels
● 5.745 to 5.825 GHz; 5 channels
C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.825 GHz; 5 channels
D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
F (F regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.805 GHz; 4 channels
G (G regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.825 GHz; 5 channels
H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.150 to 5.350 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels |
I (I regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.620 GHz; 7 channels
● 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.660 to 5,805 GHz; 7 channels
S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz;, 11 channels
● 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.280 to 5.320 GHz; 3 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels |
|||||
Maximum number of nonoverlapping channels |
2.4 GHz ● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3 |
5 GHz ● 802.11a:
◦ 20 MHz: 25 FCC, 16 EU
● 802.11n:
◦ 20 MHz: 25 FCC, 16 EU
◦ 40 MHz: 12 FCC, 7 EU
◦ 20 MHz: 25 FCC, 16 EU
◦ 40 MHz: 12 FCC, 7 EU
◦ 80 MHz: 6 FCC, 3 EU
◦ 160 MHz 2 FCC, 1 EU |
|||||
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
|||||||
Compliance standards |
◦ UL 60950-1
◦ CAN/CSA-C22.2 No. 60950-1
◦ UL 2043
◦ IEC 60950-1
◦ EN 60950-1
◦ EN 50155 for 2800e (Operating temperature -20° to 50°C)
● Radio approvals:
◦ FCC Part 15.107, 15.109, 15.247, 15.407, 14-30
◦ RSS-247 (Canada)
◦ EN 300.328, EN 301.893 (Europe)
◦ ARIB-STD 66 (Japan)
◦ ARIB-STD T71 (Japan)
◦ EMI and susceptibility (Class B)
◦ ICES-003 (Canada)
◦ VCCI (Japan)
◦ EN 301.489-1 and -17 (Europe)
◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
● IEEE standards:
◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
◦ IEEE 802.11ac
● Security:
◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
◦ 802.1X
◦ Advanced Encryption Standards (AES)
● Extensible Authentication Protocol (EAP) types:
◦ EAP-Transport Layer Security (TLS)
◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MCSHAPv2)
◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2
◦ EAP-Flexible Authentication via Secure Tunneling (FAST)
◦ PEAP v1 or EAP-Generic Token Card (GTC)
◦ EAP-Subscriber Identity Module (SIM)
● Multimedia:
◦ Wi-Fi Multimedia (WMM)
● Other:
◦ FCC Bulletin OET-65C
◦ RSS-102 |
||||||
Data rates supported |
802.11b: 1, 2, 5.5, and 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n HT20: 6.5 to 216.7 Mbps (MCS0 to MCS23) 802.11n HT40: 13.5 to 450 Mbps (MCS0 to MCS23) 802.11ac VHT20: 6.5 to 288.9 Mbps (MCS0 to 8 – SS 1, MCS0 to 9 – SS 2 and 3) 802.11ac VHT40: 13.5 to 600 Mbps (MCS0 to 9 – SS 1 to 3) 802.11ac VHT80: 29.3 to 1300 Mbps (MCS0 to 9 – SS 1 to 3) 802.11ac VHT160: 58.5 to 2304 Mbps (MCS0 to 9 – SS 1 and 2, MCS0 to 8 – SS 3) |
||||||
Transmit power and receive sensitivity |
|||||||
Spatial streams |
5-GHz radio |
2.4-GHz flexible radio |
5-GHz flexible radio |
||||
Total Tx power (dBm) |
Rx sensitivity (dBm) |
Total Tx power (dBm) |
Rx sensitivity (dBm) |
Total Tx power (dBm) |
Rx sensitivity (dBm) |
||
802.11/11b |
|||||||
1 Mbps |
1 |
NA |
NA |
23 |
-101 |
NA |
NA |
11 Mbps |
1 |
NA |
NA |
23 |
-88 |
NA |
NA |
802.11a/g |
|||||||
6 Mbps |
1 |
23 |
-93 |
23 |
-91 |
23 |
-92 |
24 Mbps |
1 |
23 |
-89 |
23 |
-87 |
23 |
-89 |
54 Mbps |
1 |
23 |
-81 |
23 |
-77 |
22 |
-80 |
802.11n HT20 |
|||||||
MCS0 |
1 |
23 |
-93 |
23 |
-91 |
23 |
-93 |
MCS4 |
1 |
23 |
-88 |
23 |
-86 |
23 |
-87 |
MCS7 |
1 |
23 |
-79 |
23 |
-77 |
22 |
-78 |
MCS8 |
2 |
23 |
-93 |
23 |
-91 |
21 |
-93 |
MCS12 |
2 |
23 |
-86 |
23 |
-85 |
23 |
-86 |
MCS15 |
2 |
23 |
-79 |
23 |
-77 |
21 |
-78 |
MCS16 |
3 |
23 |
-93 |
23 |
-91 |
23 |
-92 |
MCS20 |
3 |
23 |
-85 |
23 |
-84 |
22 |
-84 |
MCS23 |
3 |
23 |
-78 |
23 |
-76 |
18 |
-77 |
802.11n HT40 |
|||||||
MCS0 |
1 |
23 |
-90 |
|
|
23 |
-89 |
MCS4 |
1 |
23 |
-85 |
|
|
23 |
-84 |
MCS7 |
1 |
23 |
-76 |
|
|
23 |
-75 |
MCS8 |
2 |
23 |
-90 |
|
|
23 |
-89 |
MCS12 |
2 |
23 |
-83 |
|
|
23 |
-83 |
MCS15 |
2 |
23 |
-76 |
|
|
21 |
-76 |
MCS16 |
3 |
23 |
-90 |
|
|
23 |
-89 |
MCS20 |
3 |
23 |
-82 |
|
|
23 |
-81 |
MCS23 |
3 |
23 |
-75 |
|
|
20 |
-74 |
802.11ac VHT20 |
|||||||
MCS0 |
1 |
23 |
-93 |
|
|
23 |
-92 |
MCS4 |
1 |
23 |
-88 |
|
|
23 |
-87 |
MCS7 |
1 |
23 |
-82 |
|
|
22 |
-80 |
MCS8 |
1 |
23 |
-77 |
|
|
21 |
-75 |
MCS0 |
2 |
23 |
-93 |
|
|
23 |
-91 |
MCS4 |
2 |
23 |
-86 |
|
|
23 |
-84 |
MCS7 |
2 |
23 |
-79 |
|
|
21 |
-77 |
MCS8 |
2 |
23 |
-75 |
|
|
20 |
-73 |
MCS9 |
2 |
NA |
NA |
|
|
NA |
NA |
MCS0 |
3 |
23 |
-93 |
|
|
23 |
-91 |
MCS4 |
3 |
23 |
-85 |
|
|
22 |
-83 |
MCS7 |
3 |
23 |
-78 |
|
|
20 |
-76 |
MCS8 |
3 |
23 |
-74 |
|
|
19 |
-72 |
MCS9 |
3 |
23 |
-72 |
|
|
18 |
-70 |
802.11ac VHT40 |
|||||||
MCS0 |
1 |
23 |
-90 |
|
|
23 |
-89 |
MCS4 |
1 |
23 |
-85 |
|
|
23 |
-84 |
MCS7 |
1 |
23 |
-78 |
|
|
22 |
-77 |
MCS8 |
1 |
23 |
-75 |
|
|
21 |
-73 |
MCS9 |
1 |
23 |
-73 |
|
|
20 |
-72 |
MCS0 |
2 |
23 |
-90 |
|
|
23 |
-89 |
MCS4 |
2 |
23 |
-83 |
|
|
23 |
-82 |
MCS7 |
2 |
23 |
-76 |
|
|
21 |
-75 |
MCS8 |
2 |
23 |
-73 |
|
|
20 |
-72 |
MCS9 |
2 |
23 |
-71 |
|
|
19 |
-69 |
MCS0 |
3 |
23 |
-90 |
|
|
23 |
-89 |
MCS4 |
3 |
23 |
-82 |
|
|
23 |
-80 |
MCS7 |
3 |
23 |
-74 |
|
|
20 |
-73 |
MCS8 |
3 |
23 |
-70 |
|
|
19 |
-68 |
MCS9 |
3 |
23 |
-69 |
|
|
18 |
-67 |
802.11ac VHT80 |
|||||||
MCS0 |
1 |
23 |
-87 |
|
|
23 |
-86 |
MCS4 |
1 |
23 |
-83 |
|
|
23 |
-81 |
MCS7 |
1 |
23 |
-76 |
|
|
22 |
-74 |
MCS8 |
1 |
23 |
-72 |
|
|
21 |
-70 |
MCS9 |
1 |
23 |
-69 |
|
|
20 |
-68 |
MCS0 |
2 |
23 |
-87 |
|
|
23 |
-86 |
MCS4 |
2 |
23 |
-80 |
|
|
23 |
-79 |
MCS7 |
2 |
23 |
-73 |
|
|
21 |
-72 |
MCS8 |
2 |
23 |
-69 |
|
|
20 |
-68 |
MCS9 |
2 |
23 |
-67 |
|
|
19 |
-66 |
MCS0 |
3 |
23 |
-87 |
|
|
23 |
-86 |
MCS4 |
3 |
23 |
-77 |
|
|
23 |
-77 |
MCS7 |
3 |
23 |
-72 |
|
|
20 |
-70 |
MCS8 |
3 |
23 |
-67 |
|
|
19 |
-66 |
MCS9 |
3 |
22 |
-65 |
|
|
18 |
-64 |
802.11ac VHT160 |
|||||||
MCS0 |
1 |
23 |
-83 |
|
|
23 |
-83 |
MCS4 |
1 |
23 |
-78 |
|
|
23 |
-78 |
MCS7 |
1 |
23 |
-71 |
|
|
22 |
-71 |
MCS8 |
1 |
23 |
-67 |
|
|
21 |
-68 |
MCS9 |
1 |
23 |
-66 |
|
|
20 |
-66 |
MCS0 |
2 |
23 |
-83 |
|
|
23 |
-83 |
MCS4 |
2 |
23 |
-76 |
|
|
23 |
-76 |
MCS7 |
2 |
23 |
-69 |
|
|
21 |
-69 |
MCS8 |
2 |
23 |
-65 |
|
|
20 |
-66 |
MCS9 |
2 |
23 |
-63 |
|
|
19 |
-63 |
MCS0 |
3 |
23 |
-82 |
|
|
23 |
-83 |
MCS4 |
3 |
23 |
-74 |
|
|
22 |
-74 |
MCS7 |
3 |
23 |
-67 |
|
|
20 |
-68 |
MCS8 |
3 |
23 |
-62 |
|
|
19 |
-62 |
Documentation:
Download the Cisco Aironet 2800 Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
