| Item |
Specification |
| Authentication and security |
- Wi-Fi Protected Access 2 (WPA2 ); WPA3 is coming in a future release
- 802.1X, Remote Authentication Dial-In User Service (RADIUS); Authentication, Authorization, and Accounting (AAA)
- Segmentation via VLANs (up to 16)
- 802.11r and 802.11i
- Guest network can also authenticate against: Google and Facebook
|
Maximum clients |
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point, or 1000 in a system |
Maximum # of access points |
|
Ma Max # of mesh extenders |
Maximum number of associated Cisco Business mesh extenders: 25 per access point, up to 8 hops |
802.11ac |
- 4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps
- 802.11ac beamforming
- 20, 40, 80 MHz channels
- Dynamic Frequency Selection (DFS)
|
Data rates supported |
- 802.11b: 1, 2, 5.5, and 11 Mbps
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
- 802.11n data rates on 2.4 GHz and 5GHz: 6.5 to 600Mbps (only 20 MHz and MCS 0 to MCS 15)
- 802.11ac data rates (5 GHz): 6.5 to 1733Mbps (MCS0-MCS9)
|
| Available transmit power settings3 |
2.4 GHz
|
5 GHz
|
Maximum number of non-overlapping channels |
A (A regulatory domain):
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
- 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain):
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz; 11 channels
- 5.745 to 5.865 GHz; 7 channels
C (C regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.745 to 5.825 GHz, 5 channels
D (D regulatory domain):
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
- 2.412 to 2.472 GHz; 13 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
F (F regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.745 to 5.805 GHz, 4 channels
G (G regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.745 to 5.865 GHz; 7 channels
H (H regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.745 to 5.825 GHz, 5 channels
I (I regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.180 to 5.320 GHz, 8 channels
|
K (K regulatory domain):
- 2.412 to 2.462 GHz, 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.620 GHz, 7 channels
- 5.745 to 5.805 GHz, 4 channels
N (N regulatory domain):
- 2.412 to 2.462 GHz, 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.745 to 5.825 GHz, 5 channels
Q (Q regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz, 11 channels
R (R regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.660 to 5,825 GHz; 8 channels (excludes 5.700 to 5.745 GHz)
S (S regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz, 11 channels
- 5.745 to 5.825 GHz, 5 channels
T (T regulatory domain):
- 2.412 to 2.462 GHz, 11 channels
- 5.280 to 5.320 GHz; 3 channels
- 5.500 to 5.700 GHz; 12 channels
- 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain):
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
- 5.745 to 5.825 GHz; 5 channels
|
| Note:This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
| Maximum number of nonoverlapping channels |
2.4 GHz
|
5 GHz
- 802.11a:
- 802.11n:
- 20 MHz: 26 FCC, 16 EU
- 40 MHz: 12 FCC, 7 EU
- 802.11ac:
- 20 MHz: 26 FCC, 16 EU
- 40 MHz: 12 FCC, 7 EU
- 80 MHz: 5 FCC, 3 EU
|
| Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |

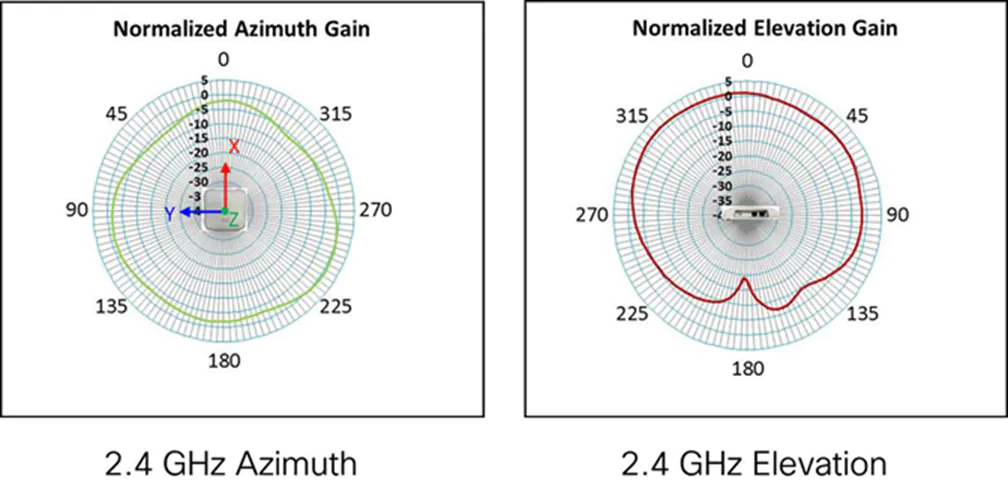

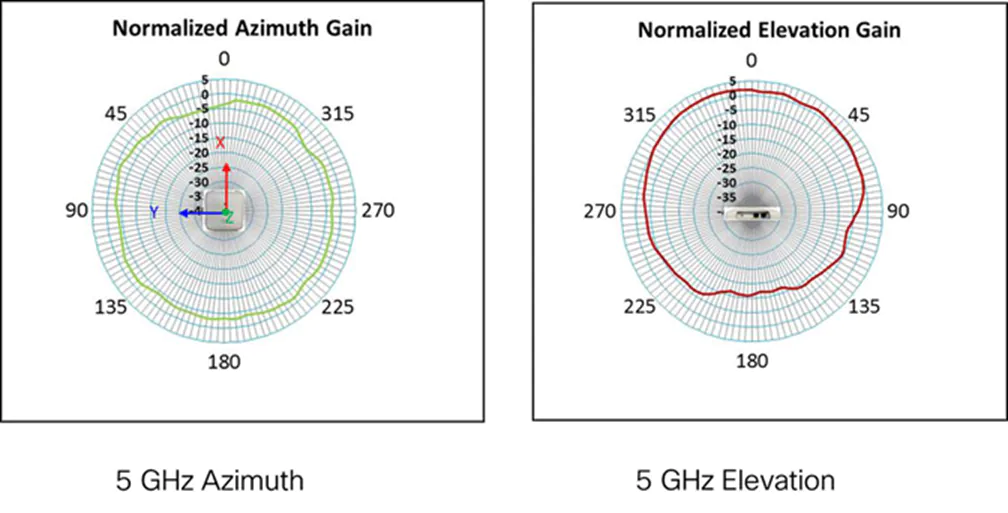

| Integrated antenna |
- 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional
- 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional
|
| Ethernet ports |
- Authentication with 802.1X or MAC filtered
- Dynamic VLAN or per port
|
| Interface |
- 2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
- RJ-45 console port (not functional)
- USB 2.0 (not functional)
|
| Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
Dimensions (W x L x H) |
Access point (without mounting bracket): 7 x 7 x 1.5 in |
Weight |
0.94 lb (0.43 kg) |
| Environmental |
- Nonoperating (storage) temperature: —22° to 158°F (—30° to 70°C)
- Nonoperating (storage) altitude test: 25˚C, 15,000 ft
- Operating temperature: 32° to 122°F (0° to 50°C)
- Operating humidity: 10% to 90% (noncondensing)
- Operating altitude test: 40˚C, 9843 ft
|
| System |
1GB MB DRAM, 256 MB flash |
| Powering options |
- 802.3af/at Ethernet switch, a Cisco Business Switch with PoE is recommended
- Optional Cisco Business Power over Ethernet injector (CB-PWRINJ-xx)
|
Power draw |
13.2W |
| Compliance |
- Safety:
- IEC 60950-1
- EN 60950-1
- AS/NZS 60950.1
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- UL 2043
- Class III Equipment
- EMC/EMI:
- Emissions:
- CISPR 32 (rev. 2015)
- EN 55032 (rev. 2012/AC:2013)
- EN 55032 (rev. 2015)
- EN61000-3-2 (rev. 2014)
- EN61000-3-3 (rev. 2013)
- KN61000-3-2
- KN61000-3-3
- AS/NZS CISPR 32 Class B (rev. 2015)
- 47 CFR FCC Part 15B
- ICES-003 (rev. 2016 Issue 6, Class B)
- VCCI (V3)
- CNS (rev. 13438)
- KN-32
- TCVN 7189 (rev. 2009)
- Immunity:
- CISPR 24 (rev. 2010)
- EN 55024 / EN 55035 (rev. 2010)
- Emissions and Immunity:
- EN 301 489-1 (v2.1.1 2017-02)
- EN 301 489-17 (v3.1.1 2017-02)
- QCVN (18:2014)
- KN 489-1
- KN 489-17
- EN 60601 (1-1:2015)
- Radio:
- EN 300 328 (v2.1.1)
- EN 301 893 (v2.1.1)
- AS/NZS 4268 (rev. 2017)
- 47 CFR FCC Part 15C, 15.247, 15.407
- RSP-100
- RSS-GEN
- RSS-247
- China regulations: State Radio Regulation of China (SRRC)
- LP0002 (rev 2018.1.10)
- Japan Std. 33a, Std. 66, and Std. 71
- RF Safety:
- EN 50385 (rev. Aug 2002)
- Australian Radiation Protection and Nuclear Safety Agency (ARPANSA)
- AS/NZS 2772 (rev. 2016)
- EN 62209-1 (rev. 2016)
- EN 62209-2 (rev. 2010)
- 47 CFR Part 1.1310 and 2.1091
- RSS-102
- IEEE standards:
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3af/at
- IEEE 802.11 a/b/g/n/ac
- IEEE 802.11h, 802.11d
- Energy efficiency:
- Reg. 278/2009 EuP Lot 7, Tier 1 4/27/2010, Tier 2 4/27/2010 Level V
- Reg. 1275/2008 EuP Lot 6, Tier 1 1/7/2010, Tier 2 4/27/2013. Applies to EMC Class B products
- EISA 2007, Level V
- NRCan Level V
- AS/NZS 4665.2, MEPS Level V
- China Energy Conservation Program (CECP) Level V
- Security:
- 802.11i, Wi-Fi Protected Access 2 (WPA2), WAP3 (future), WPA
- 802.1X
- Advanced Encryption Standards (AES)
- Extensible Authentication Protocol (EAP) types:
- EAP-Transport Layer Security (TLS)
- EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
- Protected EAP (PEAP) v0 or EAP-MSCHAPv2
- EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
- PEAP v1 or EAP-Generic Token Card (GTC)
- EAP-Subscriber Identity Module (SIM)
|
| Warranty |
Cisco Business limited lifetime hardware warranty
Free software updates, no service contract required |
