Cisco Catalyst IE3400 Rugged Series
Advanced Gigabit Ethernet for optimizing your network

Cisco Industrial Ethernet IE3400-rugged


Cisco Products
Cisco Catalyst IE3400 Rugged Series
Cisco Catalyst IE3400-8T2S-E
Ports-10, Copper (RJ45)-8, PoE+/PoE -2, Network Essentials
#IE-3400-8T2S-E
Get a Quote!
Cisco Catalyst IE3400 Rugged - IE-3400-8T2S-A
Ports-10, Copper (RJ45)-8, PoE+/PoE -2, Network Essentials, 240W (base), 480W (with expansion module)
#IE-3400-8T2S-A
Get a Quote!
Cisco Catalyst IE3400 Rugged Series-IE-3400-8P2S-E
Ports-10, Copper (RJ45)-8, PoE+/PoE -2, Network Essentials, 240W (base), 480W (with expansion module)
#IE-3400-8P2S-E
Get a Quote!
Cisco Catalyst IE3400 Rugged - IE-3400-8T2S-A
Ports-10, Copper (RJ45)-8, PoE+/PoE -2, Network Essentials, 240W (base), 480W (with expansion module)
#IE-3400-8T2S-A
Get a Quote!
Cisco Catalyst IE3400 Rugged - IEM-3400-8T=
Ports-8, Copper (RJ45)-8
#IEM-3400-8T=
Get a Quote!
Cisco Catalyst IE3400 Rugged - IEM-3400-8S=
Ports-8 , PoE+/PoE -8
#IEM-3400-8S=
Get a Quote!
Cisco Catalyst IE3400 Rugged - IEM-3400-8P=
Ports-8, Copper (RJ45)-8, Supported with IE3400 PoE base modules only to provide a total PoE budget of 480W
#IEM-3400-8P=
Get a Quote!

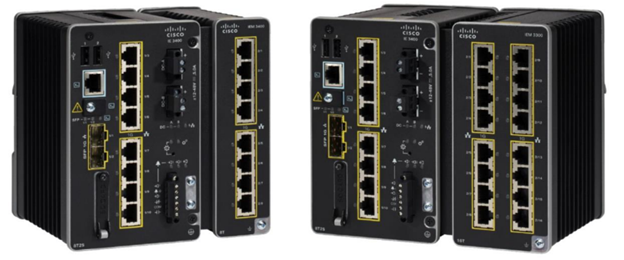

Cisco's Catalyst IE3400 Rugged Series switches combine full Gigabit Ethernet switch solutions with advanced features in a modular, future-proof design. Expandable up to 26 ports in a compact form factor, these rugged switches are optimized for size and power, and bring Cisco intent-based networking to Industrial Ethernet applications.

Features and capabilities


Advanced features support for digital transformation - Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.

Modular, versatile switch design - The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.

Compact form factor for rugged switch use cases - Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.

Fast speed, all Gigabit Ethernet - Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Open extensible platform with IOS XE - Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quick

Use Cases

Warehouses and distribution centers

Enhance networking security, safety, and optimize industrial operations with real-time visibility by securely connecting numerous warehouse systems.

Airport jetways

Improve operational efficiency and enhance passenger experience by connecting endpoints, such as IP phones, cameras, auxiliary power systems, and wireless access points.

Manufacturing

Automate, reduce downtime, and increase productivity by connecting sensors, machines, and other IoT devices.


Cisco Catalyst IE3400 Rugged Series models


Product ID Total ports on expansion module Copper (RJ45) PoE/PoE+ SPF Copper (RJ45)
1GE/2.5G (with up to 802.3bt type 4 PoE)
Total system ports (including expansion module)
IE-3400-8T2S-E 10 8 2 N/A Network Essentials N/A
IE-3400-8T2S-A 10 8 2 N/A Network Essentials N/A
IE-3400-8P2S-E 10 8 2 N/A Network Essentials 240W (base), 480W (with expansion module)
IE-3400-8T2S-A 10 8 2 N/A Network Essentials 240W (base), 480W (with expansion module)
IEM-3400-8T= 8 8 N/A N/A N/A N/A
IEM-3400-8S= 8 N/A 8 N/A N/A N/A
IEM-3400-8P= 8 8 N/A N/A N/A Supported with IE3400 PoE base modules only to provide a total PoE budget of 480W

Documentation:

Download the Cisco Catalyst IE3400 Rugged Series Datasheet (PDF).
