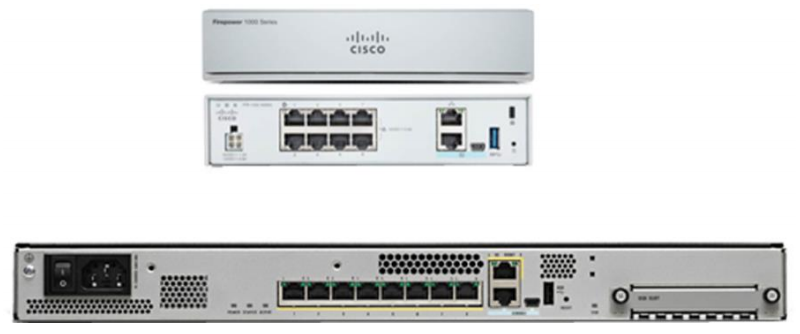

Cisco Firepower 1010 NGFW Appliance
Enterprise Firewall, Next-Generation Firewall

Cisco Products

Cisco Firepower 1010 NGFW Appliance

Cisco Firepower 1010 NGFW Appliance, 1RU

#FPR1010-NGFW-K9
List Price: ~~$1,413.55~~
Our Price: $755.90

Click here for more options and pricing!

Overview

Specifications

Documentation

Overview:

The Cisco Firepower® 1000 Series is a family of three threat-focused Next-Generation Firewall (NGFW) security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. The 1000 Series’ throughput range addresses use cases from the small office, home office, remote branch office to the Internet edge. The 1000 Series platforms run Cisco Firepower Threat Defense (FTD). Support for Cisco® Adaptive Security Appliance (ASA) Firewall will be added in a later release.

Features and benefits

Easy to configure and manage

Convenient management options deliver an easy firewall deployment experience. From a cloud-delivery model to on-premises hardware to simple on-box capabilities, it's your choice.

Power up devices, quietly and easily

Fanless design, desktop form factor, and Power over Ethernet (PoE) capability allows you to power up devices quietly right from your desk, and easily connect to a printer or IP phone.

Strengthen threat defense and intelligence

With Cisco Talos delivering the latest threat intelligence in real time, the Firepower 1000 Series can help you build security resilience where you see more and detect more.

Protect investment with integrated platform

As your business grows, our open, integrated approach allows you to save time and money by harmonizing security products, correlating events, and mitigating threats across network from a single view.

Protects against advanced threats

Application visibility and control, next-generation intrusion prevention system, advanced malware protection, and URL filtering work together to provide enterprise-level protection.

Performance and reliability

Inspect up to three times higher throughput than the prior generation. Customers can enable security services with zero degradation.

Better encrypted traffic inspection

Seventy percent of today's Internet traffic is encrypted. Better secure and protect your traffic against hidden threats.

The power of the portfolio

Works with security tools like Cisco Threat Response to detect and stop threats across your environment.

Technical Specifications:

Firepower 1000 Models

Cisco Firepower 1000 Series
Features	FPR-1010	FPR-1120	FPR-1140	FPR-1150
Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B)	890 Mbps	2.3 Gbps	3.3 Gbps	5.3 Gbps
Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B)	650 Mbps	2.3 Gbps	3.3 Gbps	4.9 Gbps
Maximum concurrent sessions, with AVC	100K	200K	400K	600K
Maximum new connections per second, with AVC	6K	15K	22K	28K
Transport Layer Security (TLS)	195 Mbps	850 Mbps	1.2 Gbps	1.4 Gbps
Throughput: NGIPS (1024B)	900 Mbps	2.6 Gbps	3.5 Gbps	6.1 Gbps
IPSec VPN throughput (1024B TCP w/Fastpath)	400 Mbps	1.2 Gbps	1.4 Gbps	2.4 Gbps
Maximum VPN Peers	75	150	400	800
Cisco Firepower Device Manager (local management)	Yes	Yes	Yes	Yes
Centralized management	Centralized configuration, logging, monitoring, and reporting are performed by the Threat Defense Manager (FMC) or, alternatively, from the cloud with Cisco Defense Orchestrator
AVC	Standard, supporting more than 4000 applications, as well as geolocations, users, and websites
AVC: OpenAppID support for custom, open-source application detectors	Standard
Cisco Security Intelligence	Standard, with IP, URL, and DNS threat intelligence
Cisco IPS	Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence
Cisco Malware Defense for Networks	Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco AMP for Endpoints is also optionally available
Cisco Malware Analytics sandboxing	Available
URL filtering: number of categories	More than 80
URL filtering: number of URLs categorized	More than 280 million
Automated threat feed and IPS signature updates	Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos® group/td>
Third-party and open- source ecosystem	Open API for integrations with third-party products; Snort and OpenAppID community resources for new and specific threats
High availability and clustering	Active/standby
Cisco Trust Anchor Technologies	Cisco Firepower 1000 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details
ASA Performance
Stateful inspection firewall throughput	2 Gbps	4.5 Gbps	6 Gbps	7.5 Gbps
Stateful inspection firewall throughput (multiprotocol)	1.4 Gbps	2.5 Gbps	3.5 Gbps	4.5 Gbps
Concurrent firewall connections	100,000	200,000	400,000	600,000
Firewall latency (UDP 64B microseconds)	-	-	-	-
New connections per second	25,000	75,000	100,000	150,000
IPsec VPN throughput (450B UDP L2L test)	500 Mbps	1 Gbps	1.2 Gbps	1.7 Gbps
Maximum VPN Peers	75	150	400	800
Security contexts (included; maximum)	NA	2; 5	2; 5	2; 5
High availability	Active/standby	Active/active and Active/standby	Active/active and Active/standby	Active/active and Active/standby
Clustering	-	-	-	-
Scalability	VPN Load Balancing
Centralized management	Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator
Adaptive Security Device Manager	Web-based, local management for small-scale deployments
Hardware specifications
Dimensions (H x W x D)	1.82 x 7.85 x 8.07 in.	1.72 x 17.2 x 10.58 in.	1.72 x 17.2 x 10.58 in.	1.72 x 17.2 x 10.58 in.
Form factor (rack units)	DT	1RU	1RU	1RU
Integrated I/O	8 x RJ-45	8 x RJ-45, 4 x SFP	8 x RJ-45, 4 x SFP	8 x RJ-45, 2 x 1Gbps SFP, 2 x 1/10Gbps SFP+
Integrated network management ports	1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)	1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)	1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)	1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)
Serial port	1 x RJ-45 console	1 x RJ-45 console	1 x RJ-45 console	1 x RJ-45 console
USB	1 x USB 3.0 Type-A (500mA)	1 x USB 3.0 Type-A (500mA)	1 x USB 3.0 Type-A (500mA)	1 x USB 3.0 Type-A (500mA)
Storage	1 x 200 GB	1 x 200 GB	1 x 200 GB	1 x 200 GB
Power supply configuration	+12V and -53.5V	+12V	+12V	+12V
AC input voltage	100 to 240V AC	100 to 240V AC	100 to 240V AC	100 to 240V AC
AC maximum input current	< 2A at 100V, < 1A at 240V	< 2A at 100V, < 1A at 240V	< 2A at 100V, < 1A at 240V	< 2A at 100V, < 1A at 240V
AC maximum output power	115W (55W of +12V and 60W of -53.5V)	100W	100W	100W
AC frequency	50 to 60 Hz	50 to 60 Hz	50 to 60 Hz	50 to 60 Hz
AC efficiency	>88% at 50% load	>85% at 50% load	>85% at 50% load	>85% at 50% load
Redundancy	None	None	None	None
Fans	None	1 integrated fan2	1 integrated fan2	1 integrated fan2
Noise	0 dBA	31.7 dBA @ 25C, 56.8 dBA at highest system performance	34.2 dBA @ 25C, 56.8 dBA at highest system performance	34.2 dBA @ 25C, 56.8 dBA at highest system performance
Rack mountable	Yes. Separate kit must be ordered.	Yes. Fixed mount brackets included (2-post).	Yes. Fixed mount brackets included (2-post).	Yes. Fixed mount brackets included (2-post).
Weight	3 lb (1.36 kg)	8 lb (3.63 kg)	8 lb (3.63 kg)	8 lb (3.63 kg)
Temperature: operating	32 to 104°F (0 to 40°C)	32 to 104°F (0 to 40°C)	32 to 104°F (0 to 40°C)	32 to 104°F (0 to 40°C)
Temperature: nonoperating	-13 to 158°F (-25 to 70°C)	-13 to 158°F (-25 to 70°C)	-13 to 158°F (-25 to 70°C)	-13 to 158°F (-25 to 70°C)
Humidity: operating	90% noncondensing	90% noncondensing	90% noncondensing	90% noncondensing
Humidity: nonoperating	10 to 90% noncondensing	10 to 90% noncondensing	10 to 90% noncondensing	10 to 90% noncondensing
Altitude: operating	9843 ft (max) 3000 m (max)	9843 ft (max) 3000 m (max)	9843 ft (max) 3000 m (max)	9843 ft (max) 3000 m (max)
Altitude: nonoperating	15,000 ft (max)	15,000 ft (max)	15,000 ft (max)	15,000 ft (max)
Specification
Regulatory compliance	Products comply with CE markings per directives 2004/108/EC and 2006/108/EC
Safety	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 GB4943
EMC: emissions	47CFR Part 15 (CFR 47) Class A (FCC Class A) AS/NZS CISPR22 Class A CISPR22 CLASS A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EN300386 TCVN7189
EMC: immunity	EN55024 CISPR24 EN300386 KN24 TVCN 7317 EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6, EN-61000-4-8, EN61000-4-11

Documentation:

Download the Cisco Firepower 1000 Series Datasheet (PDF).
