Cisco Integrated Services Router 111x
Reliability, Security, and Performance

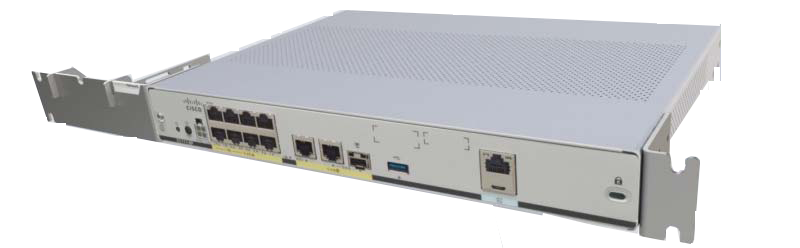

Cisco 111x Integrated Services Router

Cisco Products

Cisco 111x Series ISRs

Cisco ISR 1100 8-Port Dual GE WAN Ethernet Router

#C1111-8P
List Price: ~~$2,207.22~~
Our Price: $1,356.55

Cisco ISR 1100 4-Port Dual GE WAN Ethernet Router

#C1111-4P
List Price: ~~$1,911.75~~
Our Price: $1,174.96

Cisco ISR 1100 4-Port Dual GE LTE Adv SMS GPS Router w/ EMEAR NA Domain

#C1111-4PLTEEA
List Price: ~~$2,596.44~~
Our Price: $1,595.76

Cisco C1112-8P Router
9 Ports - Management Port - 1 Slots - Gigabit Ethernet - Rack-mountable ETHERNET ROUTER

#C1112-8P
List Price: ~~$2,123.28~~
Our Price: $1,421.11

Cisco C1113-8P Router
9 Ports - Management Port - 1 Slots - Gigabit Ethernet - Rack-mountable, Desktop ROUTER

#C1113-8P
List Price: ~~$2,123.28~~
Our Price: $1,421.65

Cisco C1116-4P Router
5 Ports - PoE Ports - Management Port - 1 Slots - Gigabit Ethernet - VDSL2/ADSL2+ - Rack-mountable, Desktop

#C1116-4P
List Price: ~~$1,413.55~~
Our Price: $868.77

Cisco C1117-4P Router
6 Ports - PoE Ports - Management Port - 1 Slots - Gigabit Ethernet - VDSL - Rack-mountable

#C1117-4P
List Price: ~~$1,413.55~~
Our Price: $868.77

Click here for more options and pricing!

Overview:

Reliability, security, and performance

Get Internet access, advanced security, and wireless services in one device. Cisco 1000 Series Integrated Services Routers (ISRs) are fixed, high-performance routers that are easy to deploy and manage. Small yet powerful, they provide highly secure broadband, Metro Ethernet, and wireless LAN connectivity.

Cisco® 1000 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.

The Cisco 1000 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.

Features & Benefits:

Next-generation connectivity

Get increased mobility and next-generation WAN and LAN options. Access Ethernet, DSL, LTE Advanced, and 802.11ac Wi-Fi. The 1000 Series is ideal for use as customer premises equipment.

Intent-based networking

Manage and operate your WAN from a single dashboard. Provide highly secure, direct Internet access at the branch and optimize the user experience with Cisco SD-WAN.

Integrated enterprise-class security

Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering.

Easy management and deployment

Use one operating system for consistency and visibility across all branch offices and remote sites. The 1000 Series is the first fixed-configuration router with Cisco’s trusted IOS XE software.

Table1: Primary Business Features & Benefits

Business need	Features/description
Lightweight, compact size with low power consumption	● Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.
High performance to run concurrent services	● High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.
High availability and business continuity	● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).
Consistent, high application performance levels	● The router can run multiple services simultaneously with minimal performance degradation.
Risk mitigation with multilevel security	● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN. ● Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility. ● Cisco Umbrella^™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.
Unified control of wired and wireless networks from a common console for streamlined operations	● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers.
Remote configuration and management to keep local IT staff lean	● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069.
Performance ● Throughput ● Service reliability	● ISR 1000 can provide encrypted traffic performance greater than 350 Mbps. ● A distributed multicore architecture with the dedicated control plane and service plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.
Lower WAN expenditures	● Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection. ● Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.
Pay as you grow: IPsec performance upgrade model	● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.
IT consolidation, space savings, and improved total cost of ownership (TCO)	● Single converged branch platform integrates routing, switching, security, and performance management capabilities.
Business continuity and increased resiliency	● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints.

Table2: Support for Software-Defined WAN on ISR 1000

Cisco SD-WAN offers an entirely new way to manage and operate your WAN infrastructure. Cisco SDWAN is a cloud delivered architecture that offers secure, flexible and rich services with the following key benefits:

Cisco SD-WAN	Cisco SD-WAN capability can be enabled on ISR 1000 platform
Better user experience	The ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.
Greater agility	Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months.
Advanced threat protection	Securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data.

IOS XE SD-WAN software enables important steps towards Intent Based Networking for WAN, i.e.

Centralized management and operational simplicity
Secure connectivity on the hybrid WAN
Optimized access to SaaS and Public Cloud
Predictable Application Quality of Experience with policy-based automation

Technical Specifications:

Cisco 1100 Series

Feature	Specification
Memory (default and maximum)	DRAM: 4 GB Only C1111X-8P,C1121X-8P,C1126X,C1127X,C1161X models have 8GB DRAM	Flash: 4 GB Only C1111X-8P,C1121X8P,C1126X,C1127X,C1161X models have 8GB Flash
Console	Micro USB console (Type A). RJ45.
Micro-USB port (reserved)	Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
WLAN interfaces	Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO). 802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller.
Maximum clients	Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image.
Authentication and security	AES for Wi-Fi Protected Access 2 (WPA2). 802.1X, RADIUS AAA. 802.11r and 802.11i.
802.11ac	2x2 SU-MIMO/MU-MIMO with two spatial streams. Maximal Ratio Combining (MRC). 20-, 40-, and 80-MHz channels. PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). 802.11 Dynamic Frequency Selection (DFS). Cyclic Shift Diversity (CSD) support.
Software	Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later. Cisco IOS Software feature set: C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later. Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later.
DSL interfaces	C1116 and C1117 Dying gasp. ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a. VDSL2 Vectoring. ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+). ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+). C1112 and C1113 G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+ and VDSL2. ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b. ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, and 106b. C1118 G.SHDSL.
Serial WAN interface and protocol	Support for both synchronous and bisync modes. Synchronous maximum speed of up to 8 Mbps. Support for bisync modes. Support for network clock synchronization. EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21.
Inline PoE	Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3afcompliant PoE or 802.3at-compliant PoE+.
External power supply	Product power specifications: C111X, C1120 and C1160 Models AC input voltage: Universal 100 to 240 VAC. Frequency: 50 to 60 Hz. Maximum output power: 66W (default). Output voltages: 12 VDC. Optional PoE and PoE+: Single 150W power supply required for Cisco 1100-8P series router Single 115W power supply required for Cisco 1100-4P series router External output voltage: 48 VDC. C1101-4PLTEPWX and C1109-4PLTE2PWX Models: AC input voltage: Universal 100 to 240 VAC. Frequency: 50 to 60 Hz. Maximum output power: 66W (default iTemp for C1109-4PLTE2PWX Models). Output voltages: 12 VDC. C1101-4P, C1101-4PLTEP,C1109-2PLTE, and C1109-4PLTE2P Models: AC input voltage: Universal 100 to 240 VAC. Frequency: 50 to 60 Hz. Maximum output power: 30W (default iTemp for Models). Output voltages: 12 VDC.
USB 3.0	USB devices supported: USB eTokens and USB flash memory Devices USB 3.0 supports to be connected externally.
LEDs	WWAN (green/amber). SIM status (green/amber). Received signal strength indication (RSSI) bar (green). 3G/LTE service (green/amber). GPS (green/amber). Speed and link for Gigabit Ethernet WAN port (green). Speed and link for all Fast Ethernet LAN ports (green).
Physical dimensions (H x W x D)	C111X Models 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models). 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models). C1120 Models 1.65 x 12.7 x 8.9 in. (41.9 x 322 x 226 mm). C1160 Models 1.65 x 10.8 x 7.85 in. (41.9 x 274 x 199 mm). C1101-4PLTEP and C1101-4PLTEPWX Models 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models). C1101-4P Models 1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models). C1109-2PLTE Models 1.27 x 8.4 x 6.0 in. (32.3 x 213.4 x 152.4mm) (includes rubber feet models). C1109-4PLTE2P and C1109-4PLTE2PWX Models (ship default with dual W-ANTM2050DRPSMA Wi-Fi antennae) 1.71 x 11.16 x 9.8 in. (43.4 x 283.5 x 248.9 mm) (includes rubber feet models). Pluggable .85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm). USB Based CAT4 LTE Dongle 3.69 x 1.3 x 0.39 in. (93.73 x 32.99 x 10.00 mm).
Weight	C111X Models 1.94 lb to 4.59 lb (1.94kg to 2.08 kg). 4.50 lb (2.04 kg) with LTE Advanced. 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio. 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio. C1120 Models 3.43 lb (1.56Kg). base model with 4 ports. 3.7 lb (1.68Kg). with 4 ports and pluggable LTE. 4.62 lb (2.1Kg). with LTE and WiFi. 4.53 lb (2.06Kg). with LTE and VDSL. 3.7 lb (1.68Kg). with 4 ports and pluggable LTE. C1160 Models 3.48 lb (1.58Kg). base model with 8 ports. 3.74 lb (1.7Kg). with 8 ports and pluggable LTE. C1101-4PLTEPWX Models 3.78 lb (1.71kg). C1101-4PLTEP Models 3.34 lb (1.51kg). C1101-4P Models 1.89 lb (.86kg). C1109-2PLTE Models 2.25 lb (1.02kg). C1109-4PLTE2PWX Models (Only C1109-4PLTE2PWX have external Wi-Fi antennae options) 6.23 lb (2.83kg). C1109-4PLTE2P Models 5.93 lb (2.69kg). Pluggable CAT18 LM960XX.45 lb (.21kg) CAT6 EM74XX.44 lb (.20kg). CAT4 WP76XX.40 lb (.18kg). USB Based CAT4 LTE Dongle WP76XX 0.068 lb (0.031kg)
Standard safety certifications	UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2 nd edition with all group differences and national deviations.
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
EMC immunity	EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300- 386.
Radio immunity	EN301 489-1, EN 301 489-7, and EN301 489-24.
Cellular radio	EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.
Environmental operating range	Nonoperating temperature: -4° to 149°F (-20° to 65°C). Nonoperating humidity: 5% to 95% relative humidity (noncondensing). Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). C1109-2PLTE support 32° to 122°F (0° to 50°C). C1109-4PLTE2P and C1109-4PLTE2PW models support -4° to 131°F (-20° to 55°C). Operating humidity: 10% to 85% relative humidity (noncondensing). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 30°C). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 35°C for C1109- 2PLTE models). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 40°C for C1109-4PLTE2P and C1109-4PLTE2PW models).

Documentation:

Download the Cisco 1000 Series Integrated Services Routers Datasheet (PDF).
