Cisco RV320 Dual Gigabit WAN VPN Router
Get Optimal Performance, Security, and Reliability

Overview:

The Cisco RV320 Dual Gigabit WAN VPN Router is an ideal choice for any small office or small business looking for performance, security, and reliability in its network. Network connectivity is at the heart of every small business, and secure access, firewall protection, and high performance are the cornerstones of every Cisco Small Business RV Series Router. The Cisco RV320 Dual Gigabit WAN VPN Router is no exception. With an intuitive user interface, the Cisco RV320 enables you to be up and running in minutes. The Cisco RV320 provides reliable, highly secure access connectivity for you and your employees that is so transparent you will not know it is there.

Features and Capabilities

The Cisco RV320 Dual Gigabit WAN VPN Router offers:

• Dual Gigabit Ethernet WAN ports for load balancing and business continuity
• Built-in 4-port Gigabit Ethernet switch
• Strong security with proven stateful packet inspection (SPI) firewall and hardware encryption
• High-capacity, high-performance, SSL, IP Security (IPsec) VPN capabilities
• Intuitive, browser-based device manager and setup wizards

Performance
Supports Gigabit Ethernet speeds for internal and external wired connections; easily manages large files and concurrent users to keep employees productive

Simple, highly secure access
Connect multiple locations and remote workers using VPN, or set up separate virtual networks and access rules to help secure sensitive data

Ease of use
Can be deployed directly out of the box; setup wizards reduce configuration time to minutes

Flexible
USB ports provides the ability to use 3G and 4G modems for broadband failover

Online Device Emulator
Browse through Cisco Small Business product management and configuration features.

Features and Benefits:

• Dual Gigabit Ethernet WAN ports allow load balancing and business continuity.
• Affordable, high-performance Gigabit Ethernet ports enable rapid transfer of large files, supporting multipleusers.
• Dual USB ports support a 3G/4G modem or flash drive. The WAN can also fail over to the 3G/4G modemconnected to the USB port.
• SSL VPN and site-to-site VPN enable highly secure connectivity, making the Cisco RV320 perfect for remote employees and multiple offices.
• Stateful packet inspection (SPI) firewall and hardware encryption provide strong security.
• Easy-to-use wizard-based configuration tools can be used to establish network connectivity and managesecurity.

In an ever-changing business environment, your small business network has to be powerful, flexible, accessible, and highly reliable, especially when growth is a high priority. Your network must also be able to adapt cost-effectively to these growth spurts.

The Cisco RV320 Dual Gigabit WAN VPN Router is the choice for any network in which performance, security, reliability, and adaptability top the list of requirements. The Cisco RV320 supports two connections to one service provider, delivering high performance by using load balancing, or to two different providers to deliver business continuity. High-capacity virtual private networks (VPNs) connect multiple offices and enable dozens of employees to access the information they need from any geographic location just as securely as if they were working at your main office.

Technical Specifications:

Cisco RV320 Specifications
Specifications	Description

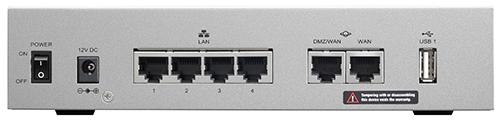

Ports	Four 10/100/1000 Gigabit Ethernet RJ-45 ports One 10/100/1000 Gigabit Ethernet RJ-45 Internet (WAN) port One 10/100/1000 Gigabit Ethernet RJ-45 DMZ/Internet (WAN) port
Dual WAN	Dual Gigabit Ethernet Ports Failover Load balancing
Standards	802.3, 802.3u IPv4 (RFC 791) IPv6 (RFC 2460)
WAN Connectivity	Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent Static IP Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Transparent bridge DNS relay, Dynamic DNS (DynDNS.org, 3322.org), DNS local database IPv6
Routing protocols	Routing Information Protocol (RIP) v1 and v2, and RIP for IPv6 (RIPng) Inter-VLAN routing Static routing VLANs supported: 7
Network Address Translation (NAT)	Port Address Translation (PAT) One-to-one NAT NAT traversal
Protocol binding	Protocols can be bound to a specific WAN port for load-balancing purposes
Network edge (DMZ)	DMZ port DMZ host
Dual USB 2.0 ports	Storage and 3G/4G modem support
Security
Firewall	SPI firewall Denial-of-service (DoS) prevention: ping of death, SYN flood, IP spoofing, WinNuke
Access rules	Schedule-based access rules Up to 50 entries
Port forwarding	Up to 30 entries
Port triggering	Up to 30 entries
Blocking	Java, cookies, ActiveX, HTTP proxy
Content filtering	Static URL blocking or keyword blocking
Secure management	HTTPS web access to device manager Username/password complexity enforcement
VLAN	802.1Q VLAN 7 VLANs supported
VPN
IP Security (IPsec)	25 IPsec site-to-site tunnels for branch office connectivity 25 IPsec VPN tunnels via Cisco VPN client and third-party clients such as "The GreenBow" for remote-access VPN connectivity
SSL VPN	10 SSL VPN tunnels for remote client access
PPTP	10 PPTP tunnels for remote client access
Encryption	Data Encryption Standard (DES) Triple Data Encryption Standard (3DES) Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256
Authentication	MD5/SHA1
IPsec NAT traversal	Supported for gateway-to-gateway and client-to-gateway tunnels
VPN pass-through	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec
Advanced VPN	Dead peer detection (DPD) Split DNS VPN backup Internet Key Exchange (IKE) with certificate
Quality of Service
Service-based QoS	Rate control or priority
Rate control	Upstream/downstream bandwidth per service
Prioritization types	Application-based priority on WAN port
Priority	Services mapped to one of two priority levels
Performance
IPsec VPN throughput	100 Mbps
SSL VPN throughput	20 Mbps
Concurrent connections	20,000
Configuration
Web User Interface	Simple, browser-based configuration (HTTP/HTTPS)
Management
Management Protocols	Web browser (HTTP/HTTPS) Simple Network Management Protocol (SNMP) v1, v2c, and v3 Bonjour
Event Logging	Local log, Syslog, Email alert, Short Message Service (SMS)
Upgradability	Firmware upgradable through the web browser Import or export configuration files from or to a USB flash drive
Environmental
Product dimensions (W x H x D)	206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in)
Power	12V 1.5A
Certifications	FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	0° to 70°C (32° to 158°F)
Operating Humidity	10% to 85% noncondensing
Storage Humidity	5% to 90% noncondensing

Documentation:

Download the Cisco RV320 and RV325 Dual WAN VPN Router Datasheet (PDF).
