Cisco Aironet 1815t Access Points
Deploy the future with 802.11ac Wave 2

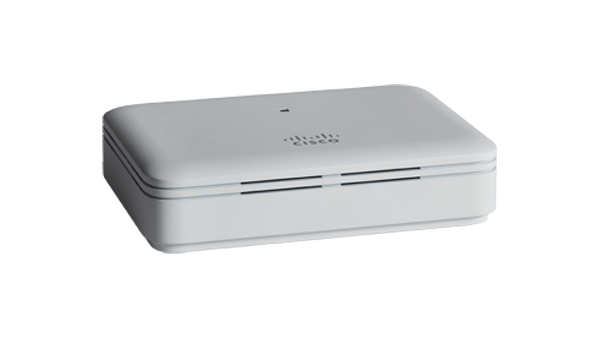

Cisco Aironet 1815 Series Access Points Product Image

Notice: Discontinued Product

This unit has been discontinued and is no longer available for purchase. We encourage you to check out our Cisco Catalyst 9100 Access Points.

End of Sale (EOL): May 1, 2022

End of Support (EOS): April 30, 2027

For customers with active and paid service and support contracts, support will be available under the terms and conditions of customers' service contract.

Overview:

Perfect for the teleworker or for a micro-branch deployment, this easy-to-install series of Office Extend access points provides secure wired and wireless access for organizations with employees who work from home.

The Cisco® Aironet® 1815t Series Access Points (Figure 1) offer a highly secure enterprise wired and wireless connection to the home, micro-branch, or any type of remote sites. No longer will geography or the elements play a role in delaying productivity, as the 1815t Series extends the corporate network to teleworkers, mobile workers, and even micro-sites. The access points connect to the home or on-site broadband Internet access and establish a highly secure tunnel to the corporate network. This tunnel allows remote employees access to data, voice, video, and cloud services for a network experience consistent with that at the corporate office. The 1815t Series supports highly secure access to corporate data and personal connectivity for teleworkers’ home devices, with segmented home traffic.

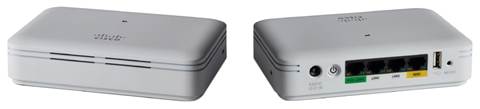

Figure 1. Cisco Aironet 1815t Access Point

Features and Benefits:

The Cisco Aironet 1815t Series helps improve workforce productivity, business resiliency, and job flexibility while reducing travel costs and carbon emissions. The 1815t Series targets commercial, enterprise, and service provider networks across all industries. Employees who need reliable and consistent access to networked business services at home, and micro-branches where remote workers require the same network connectivity as at the corporate site, are both excellent candidates for the 1815t Series.

In recent years corporate users have increasingly preferred wireless access as their form of network connectivity, due to its convenience. With this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience. The 1815t Series delivers industry-leading performance, with highly secure and reliable wireless connections that provide a robust, mobile end-user experience.

Feature	Benefit
MU-MIMO	Multiuser (MU) multiple-input multiple-output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as single-user MIMO (SU-MIMO).
Real-time service extender	Extends real-time services such as voice, wireless, video, and data to remote locations that have no IT staff. No longer will geography or climate be the reason for lost work hours. Working at home is now like being at the office.
Robust security	Using the same profile as at the corporate office, the Aironet 1815t Series establishes a secure Datagram Transport Layer Security (DTLS) connection between the access point and the controller to offer remote WLAN connectivity.
Gigabit Ethernet ports	Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to a wireless LAN controller (for compatible controllers) or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera.

Increased Wireless Performance

The Aironet 1815t Series supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

The 1815t Series allows wired access via a single RJ-45 10/100/1000 auto detection port. The access points come with three local Gigabit Ethernet ports and one uplink Gigabit Ethernet port, allowing for a variety of connections.

Mounting

The 1815t Series can be configured at the corporate office and shipped, for a simple install at the remote office. The integrated antennas optimize wireless coverage when resting on a desk.

Technical Specifications:

Item	Specification
Authentication and security	● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ● 802.1X, RADIUS authentication, authorization, and accounting (AAA) ● 802.11r ● 802.11i
Software	● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	● 2x2 single-user/multiuser MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support
Ethernet ports	● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
	802.11n data rates on 2.4 GHz:
	MCS Index¹		GI² = 800 ns				GI = 400 ns
	MCS Index¹		20-MHz Rate (Mbps)				20-MHz Rate (Mbps)
	0		6.5				7.2
	1		13				14.4
	2		19.5				21.7
	3		26				28.9
	4		39				43.3
	5		52				57.8
	6		58.5				65
	7		65				72.2
	8		13				14.4
	9		26				28.9
	10		39				43.3
	11		52				57.8
	12		78				86.7
	13		104				115.6
	14		117				130
	15		130				144.4
	802.11ac data rates on 5 GHz:
	MCS Index	Spatial Streams	GI = 800 ns				GI = 400 ns
			20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)		20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)
	0	1	6.5	13.5	29.3		7.2	15	32.5
	1	1	13	27	58.5		14.4	30	65
	2	1	19.5	40.5	87.8		21.7	45	97.5
	3	1	26	54	117		28.9	60	130
	4	1	39	81	175.5		43.3	90	195
	5	1	52	108	234		57.8	120	260
	6	1	58.5	121.5	263.3		65	135	292.5
	7	1	65	135	292.5		72.2	150	325
	8	1	78	162	351		86.7	180	390
	9	1	–	180	390		–	200	433.3
	0	2	13	27	58.5		14.4	30	65
	1	2	26	54	117		28.9	60	130
	2	2	39	81	175.5		43.3	90	195
	3	2	52	108	234		57.8	120	260
	4	2	78	162	351		86.7	180	390
	5	2	104	216	468		115.6	240	520
	6	2	117	243	526.5		130	270	585
	7	2	130	270	585		144.4	300	650
	8	2	156	324	702		173.3	360	780
	9	2	–	360	780		–	400	866.7
Maximum number of non-overlapping channels	A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.805 GHz; 4 channels G (G regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.865 GHz; 7 channels H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels I (I regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels				K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5.700 GHz; 3 channels ● 5.745 to 5.805 GHz; 4 channels S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.825 GHz; 5 channels T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Available transmit power settings	2.4 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW)					5 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW)
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antennas	● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 3 dBi
Interfaces	● 1 x 10/100/1000BASE-T autosensing (RJ-45) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: ◦ PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7mm)
Weight	● Access point without mounting bracket or any other accessories: 13 oz (365 g)
Environmental	● Operating ◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 9843 ft (3,000 m) @ 40°C ● Non-operating (storage and transportation) ◦ Temperature: -22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 15,000 ft (4,500 m) @ 25°C
System	● 512 MB DRAM ● 128 MB flash ● 710 MHz quad-core
Input power requirements	● 44 to 52V DC
Power draw	● 8.5W (no PoE out and no USB)
PoE output	● 802.3af: 15.4W at port
Physical security	● Kensington lock slot
Accessories	● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
Compliance	● Safety: ◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-247 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 50385 ● IEEE standards: ◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ◦ IEEE 802.11ac ● Security: ◦ 802.11i, WPA2, WPA ◦ 802.1X ◦ AES ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102

Documentation:

Download the Cisco Aironet 1815t Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
