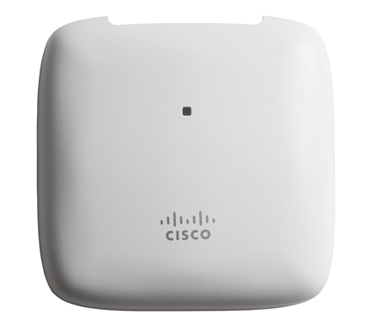

Cisco Aironet 1840 Access Point

Notice: Discontinued Product

This unit has been discontinued and is no longer available for purchase. Please contact us for a replacement.

End of Sale (EOL): May 1, 2022

End of Support (EOS): April 30, 2027

For customers with active and paid service and support contracts, support will be available under the terms and conditions of customers' service contract.

Overview:

Product Overview

The Cisco Aironet 1840 Access Points delivers an ideal blend of predictable performance in a compact form factor. Packed with 802.11ac Wave 2 features and Bluetooth Low Energy (BLE) for location-based services, this platform is ideal for small to mid-size enterprise deployments.

Ideal for small and medium-sized networks, the Cisco Aironet 1840 delivers industry-leading performance for enterprise and service provider markets via enterprise-class 4x4 MU-MIMO, four-spatial-stream access points that support the Institute of Electrical and Electronic Engineers (IEEE) 802.11ac Wave 2 standard. Integrated BLE radio enables location-based use cases such as wayfinding and asset tracking. The Aironet 1840 Access Point extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

Features and Benefits:

802.11ac Wave 1 and 2 capabilities
The IEEE 802.11ac standard delivers a better experience in typical environments, and a more predictable performance for advanced applications such as 4K or 8K video, high-density high-definition collaboration apps, all-wireless offices and Internet-of-Things (IoT).
Multiuser Multiple-Input Multiple-Output (MU-MIMO) technology
Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.
Intelligent Capture
Intelligent Capture probes the network and provides DNA Center with deep analysis. The software can track over 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.
Cisco Mobility Express
Mobility Express is designed for networks of all sizes, including small and medium-sized businesses and distributed enterprises. It provides industry-leading wireless LAN technology without the need for a physical controller or additional licenses.
Bluetooth 4.2
Integrated BLE 4.2 radio to enable IoT use cases such as location tracking.

Cisco DNA support

Pairing the Aironet 1840 Access Points with the Cisco Digital Network Architecture (DNA) allows for a total network transformation. Cisco DNA allows you to truly understand your network with real-time analytics, quickly detect and contain security threats, and easily provide network-wide consistency through automation and virtualization. By decoupling network functions from the hardware, you can build and manage your entire wired and wireless network from a single user interface.

Working together, the Aironet AP1840 and Cisco DNA offer such features as:

Cisco DNA Spaces
Apple FastLane
Cisco Identity Services Engine
Cisco DNA Analytics and Assurance
And much more

The result? Your network stays relevant, becomes digital-ready, and is the lifeblood of your organization.

Technical Specifications:

Feature	Specifications
Software	● Cisco Unified Wireless Network Software Release 8.8 MR2 or later ● Cisco IOS ® XE Software Release 16.12 or later
Supported wireless LAN controllers	● Cisco Catalyst 9800 Wireless Controllers ● Cisco 3500, 5520 and 8540 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	● 5 GHz, 4x4 MIMO with four spatial streams ● 2.4 GHz, 2x2 MIMO with two spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20 and 40 MHz channels ● PHY data rates up to 744 Mbps (40 MHz with 5 GHz and 20MHz with 2.4GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
802.11ac	● 4x4 DL MU-MIMO with four spatial streams ● MRC ● 802.11ac beamforming ● 20, 40, 80 MHz channels ● PHY data rates up to 1733 Mbps (80MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Integrated antenna	● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Interfaces	● 2 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ● Management console port (RJ-45) ● USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting brackets): AIR-AP1840I: 7 x 7 x 1.5 in
Weight	0.94 lb (0.43 kg)
Input power requirements	● 802.3at PoE+, Cisco Universal PoE (Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (note: this injector only supports 802.3af) Note: When 802.3af PoE is the source of power, then USB port will be off
Power draw	Cisco AIR-AP1840I ● 13.2W at the PSE (12.1W at the PD) with all features enabled except for the USB port ● 17.8W at the PSE (16.0W at the PD) with the USB port enabled
Environmental	Cisco AIR-AP1840I ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. Note: when ambient operating temperature exceeds 40°C, then the radio transmit duty cycle may be limited to not greater than 50%.
System memory	● 1GB MB DRAM ● 256 MB flash
Warranty	Limited lifetime hardware warranty
Available transmit power settings	2.4 GHz ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79 mW)						5 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW)
Frequency band and 20-MHz operating channels	A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.865 GHz; 7 channels C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.825 GHz; 5 channels E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.805 GHz; 4 channels G (G regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.865 GHz; 7 channels H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels						I (I regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5,825 GHz; 8 channels (excludes 5.700 to 5.745 GHz) S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.825 GHz; 5 channels T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance.
Maximum number of nonoverlapping channels	2.4 GHz 802.11b/g: 20 MHz: 3 802.11n: 20 MHz: 3						5 GHz 802.11a: 20 MHz: 26 FCC, 16 EU 802.11n: 20 MHz: 26 FCC, 16 EU 40 MHz: 12 FCC, 7 EU 802.11ac: 20 MHz: 26 FCC, 16 EU 40 MHz: 12 FCC, 7 EU 80 MHz: 5 FCC, 3 EU
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Compliance standards	Safety: IEC 60950-1 EN 60950-1 AS/NZS 60950.1 UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 Class III Equipment EMC/EMI: Emissions: CISPR 32 (rev. 2015) EN 55032 (rev. 2012/AC:2013) EN 55032 (rev. 2015) EN61000-3-2 (rev. 2014) EN61000-3-3 (rev. 2013) KN61000-3-2 KN61000-3-3 AS/NZS CISPR 32 Class B (rev. 2015) 47 CFR FCC Part 15B ICES-003 (rev. 2016 Issue 6, Class B) VCCI (V3) CNS (rev. 13438) KN-32 TCVN 7189 (rev. 2009) Immunity: CISPR 24 (rev. 2010) EN 55024 / EN 55035 (rev. 2010) Emissions and Immunity: EN 301 489-1 (v2.1.1 2017-02) EN 301 489-17 (v3.1.1 2017-02) QCVN (18:2014) KN 489-1 KN 489-17 EN 60601 (1-1:2015) Radio: EN 300 328 (v2.1.1) EN 301 893 (v2.1.1) AS/NZS 4268 (rev. 2017) 47 CFR FCC Part 15C, 15.247, 15.407 RSP-100 RSS-GEN ◦ RSS-247 China regulations SRRC LP0002 (rev 2018.1.10) Japan Std. 33a, Std. 66, and Std. 71 RF Safety: EN 50385 (rev. Aug 2002) ARPANSA AS/NZS 2772 (rev. 2016) EN 62209-1 (rev. 2016) EN 62209-2 (rev. 2010) 47 CFR Part 1.1310 and 2.1091 RSS-102 IEEE standards: IEEE 802.3 IEEE 802.3ab IEEE 802.3af/at IEEE 802.11 a/b/g/n/ac IEEE 802.11h, 802.11d Energy efficiency: Reg. 278/2009 EuP Lot 7, Tier 1 4/27/2010, Tier 2 4/27/2010 Level V Reg. 1275/2008 EuP Lot 6, Tier 1 1/7/2010, Tier 2 4/27/2013. Applies to EMC Class B products EISA 2007, Level V NRCan Level V ◦ AS/NZS 4665.2, MEPS Level V CECP Level V Security: 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA 802.1X Advanced Encryption Standards (AES) Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 or EAP-MSCHAPv2 EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) PEAP v1 or EAP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM)
Data rates supported	802.11b: 1, 2, 5.5, and 11 Mbps
	802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 15) and 5GHz
	MCS Index^[1]		GI^[2]= 800 ns			GI = 800 ns			GI = 400 ns		GI = 400 ns
			20-MHz Rate (Mbps)			40-MHz Rate (Mbps)			20-MHz Rate (Mbps)		40-MHz Rate (Mbps)
	0		6.5			13.5			7.2		15
	1		13			27			14.4		30
	2		19.5			40.5			21.7		45
	3		26			54			28.9		60
	4		39			81			43.3		90
	5		52			108			57.8		120
	6		58.5			121.5			65		135
	7		65			135			72.2		150
	8		13			27			14.4		30
	9		26			54			28.9		60
	10		39			81			43.3		90
	11		52			108			57.8		120
	12		78			162			86.7		180
	13		104			216			115.6		240
	14		117			243			130		270
	15		130			270			144.4		300
	16		19.5			40.5			21.7		45
	17		39			81			43.4		90
	18		58.5			121.5			65		135
	19		78			162			86.7		180
	20		117			243			130		270
	21		156			324			173.3		360
	22		175.5			364.5			195		405
	23		195			405			216.7		450
	24		26			54			28.9		60
	25		52			108			57.8		120
	26		78			162			86.7		180
	27		104			216			115.6		240
	28		156			324			173.3		360
	29		208			432			173.3		480
	30		234			486			260		540
	31		260			540			288.9		600
	802.11ac data rates (5 GHz):
	MCS Index	Spatial Streams		GI = 800 ns				GI = 400 ns
				20-MHz Rate (Mbps)	40-MHz Rate (Mbps)		80-MHz Rate (Mbps)	20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		80-MHz Rate (Mbps)
	0	1		6.5	13.5		29.3	7.2		15		32.5
	1	1		13	27		58.5	14.4		30		65
	2	1		19.5	40.5		87.8	21.7		45		97.5
	3	1		26	54		117	28.9		60		130
	4	1		39	81		175.5	43.3		90		195
	5	1		52	108		234	57.8		120		260
	6	1		58.5	121.5		263.3	65		135		292.5
	7	1		65	135		292.5	72.2		150		325
	8	1		78	162		351	86.7		180		390
	9	1		-	180		390	-		200		433.3
	MCS Index	Spatial Streams		GI = 800 ns				GI = 400 ns
				20-MHz Rate (Mbps)	40-MHz Rate (Mbps)		80-MHz Rate (Mbps)	20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		80-MHz Rate (Mbps)
	0	2		13	27		58.5	14.4		30		65
	1	2		26	54		117	28.9		60		130
	2	2		39	81		175.5	43.3		90		195
	3	2		52	108		234	57.8		120		260
	4	2		78	162		351	86.7		180		390
	5	2		104	216		468	115.6		240		520
	6	2		117	243		526.5	130		270		585
	7	2		130	270		585	144.4		300		650
	8	2		156	324		702	173.3		360		780
	9	2		–	360		780	–		400		866.7
	MCS Index	Spatial Streams		GI = 800 ns				GI = 400 ns
				20-MHz Rate (Mbps)	40-MHz Rate (Mbps)		80-MHz Rate (Mbps)	20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		80-MHz Rate (Mbps)
	0	3		19.5	40.5		87.8	21.7		45		97.5
	1	3		39	81		175.5	43.3		90		195
	2	3		58.5	121.5		263.3	65		135		292.5
	3	3		78	162		351	86.7		180		390
	4	3		117	243		526.5	130		270		585
	5	3		156	324		702	173.3		360		780
	6	3		175.5	364.5		-	195		405		-
	7	3		195	405		877.5	216.7		450		975
	8	3		234	486		1053	260		540		1170
	9	3		260	540		1170	288.9		600		1300
	MCS Index	Spatial Streams		GI = 800 ns				GI = 400 ns
				20-MHz Rate (Mbps)	40-MHz Rate (Mbps)		80-MHz Rate (Mbps)	20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		80-MHz Rate (Mbps)
	0	4		26	54		117	28.8		60		130
	1	4		52	108		234	57.8		120		260
	2	4		78	162		351	86.7		180		390
	3	4		104	216		468	115.6		240		520
	4	4		156	324		702	173.3		360		780
	5	4		208	432		936	231.1		480		1040
	6	4		234	486		1053	260		540		1170
	7	4		260	540		1170	288.9		600		1300
	8	4		312	648		1404	346.7		720		1560
	9	4		-	720		1560	-		800		1733.3

Transmit Power and Receive Sensitivity

Transmit Power and Receive Sensitivity
1 Mbps		5-GHz Radio		2.4-GHz Radio
	Spatial Streams	Total Tx Power (dBm)	Rx Sensitivity (dBm)	Total Tx Power (dBm)	Rx Sensitivity (dBm)
802.11/11b
1 Mbps	1	-	-	20	-99
11 Mbps	1	-	-	20	-91
802.11a/g
6 Mbps	1	23	-94	20	-93
24 Mbps	1	23	-86	20	-85
54 Mbps	1	23	-77	20	-76
802.11n HT20
MCS0	1	23	-94	20	-93
MCS4	1	23	-81	20	-81
MCS7	1	23	-74	20	-73
MCS8	2	23	-93	20	-93
MCS12	2	23	-81	20	-81
MCS15	2	23	-75	20	-75
MCS16	3	23	-93	-	-
MCS20	3	23	-81	-	-
MCS23	3	23	-74	-	-
MCS24	4	23	-92	-	-
MCS28	4	23	-82	-	-
MCS31	4	23	-75	-	-
802.11n HT40
MCS0	1	23	-91	-	-
MCS4	1	23	-79	-	-
MCS7	1	23	-72	-	-
MCS8	2	23	-90	-	-
MCS12	2	23	-78	-	-
MCS15	2	23	-71	-	-
MCS16	3	23	-89	-	-
MCS20	3	23	-78	-	-
MCS23	3	23	-70	-	-
MCS24	4	23	-90	-	-
MCS28	4	23	-79	-	-
MCS31	4	23	-72	-	-
802.11ac VHT20
MCS0	1	23	-94	-	-
MCS4	1	23	-81	-	-
MCS7	1	23	-74	-	-
MCS8	1	23	-70	-	-
MCS9	1	23	NA	-	-
MCS0	2	23	-92	-	-
MCS4	2	23	-81	-	-
MCS7	2	23	-73	-	-
MCS8	2	23	-68	-	-
MCS9	2	23	NA	-	-
MCS0	3	23	-92	-	-
MCS4	3	23	-81	-	-
MCS7	3	23	-73	-	-
MCS8	3	23	-68	-	-
MCS9	3	23	-67	-	-
MCS0	4	23	-91	-	-
MCS4	4	23	-80	-	-
MCS7	4	23	-73	-	-
MCS8	4	23	-68	-	-
MCS9	4	23	NA	-	-
802.11ac VHT40
MCS0	1	23	-91	-	-
MCS4	1	23	-79	-	-
MCS7	1	23	-72	-	-
MCS8	1	23	-67	-	-
MCS9	1	23	-66	-	-
MCS0	2	23	-90	-	-
MCS4	2	23	-78	-	-
MCS7	2	23	-71	-	-
MCS8	2	23	-66	-	-
MCS9	2	23	-65	-	-
MCS0	3	23	-89	-	-
MCS4	3	23	-78	-	-
MCS7	3	23	-71	-	-
MCS8	3	23	-64	-	-
MCS9	3	23	-62	-	-
MCS0	4	23	-88	-	-
MCS4	4	23	-78	-	-
MCS7	4	23	-70	-	-
MCS8	4	23	-65	-	-
MCS9	4	23	-64	-	-
802.11ac VHT80
MCS0	1	23	-88	-	-
MCS4	1	23	-76	-	-
MCS7	1	23	-68	-	-
MCS8	1	23	-64	-	-
MCS9	1	23	-62	-	-
MCS0	2	23	-87	-	-
MCS4	2	23	-75	-	-
MCS7	2	23	-68	-	-
MCS8	2	23	-63	-	-
MCS9	2	23	-62	-	-
MCS0	3	23	-86	-	-
MCS4	3	23	-75	-	-
MCS7	3	23	-67	-	-
MCS8	3	23	-62	-	-
MCS9	3	23	-61	-	-
MCS0	4	23	-85	-	-
MCS4	4	23	-74	-	-
MCS7	4	23	-67	-	-
MCS8	4	23	-61	-	-
MCS9	4	23	-59	-	-

Antenna Patterns:

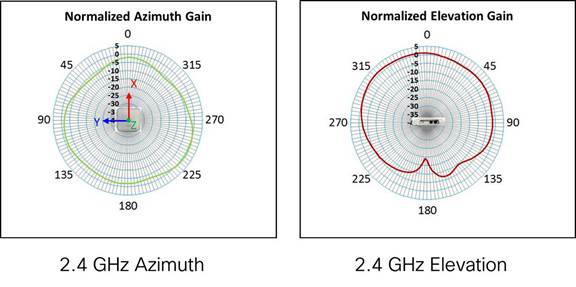

2.4 GHz Azimuth and Elevation

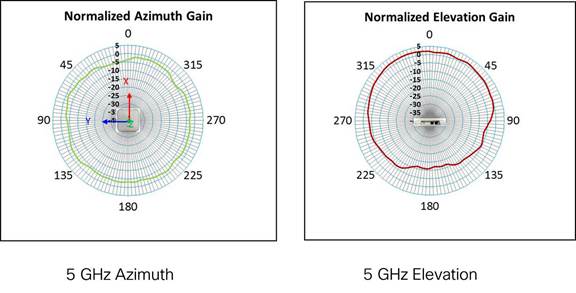

5 GHz Azimuth and Elevation

Documentation:

Download the Cisco Aironet 1840 Access Point Datasheet (PDF).
