Cisco IP Phone 7800 Series
Use Affordable, Full-Featured Voice Communications

Overview:

The Cisco IP Phone 7800 Series is a cost-effective, high-fidelity voice communications portfolio designed to improve your organization's people-centric communications, while reducing your operating costs.

It combines an attractive new ergonomic design with "always-on" reliability and secure encrypted communications. The Cisco® IP Phone 7800 Series delivers advanced IP Telephony features and crystal clear wideband audio performance to deliver an easy-to-use, full-featured voice communications experience.

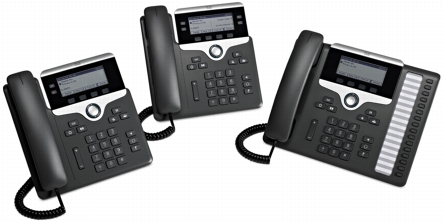

The Cisco IP Phone 7800 Series introduces three models to the Cisco IP Phone portfolio. From left-to-right, they are:

• The IP Phone 7821 supporting two lines
• The IP Phone 7841 supporting four lines
• The IP Phone 7861 supporting sixteen lines

The line keys on each model are fully programmable. You can set up keys to support either lines, such as directory numbers, or call features like speed dialing. You can also boost productivity by handling multiple calls for each directory number, using the multi-call per-line appearance feature. Tri-color LEDs on the line keys support this feature and make the phone simpler and easy to use.

Fixed function keys on all models give you one-touch access to service, messaging, directory, hold/resume, transfer, and conference features. A full-duplex speakerphone lets you set up clear multi-party conferences for flexible, productive collaboration.

The Cisco IP Phone 7800 Series sets a new standard in usability and delivers a context-sensitive user experience. It features a high resolution 3.5" (396x162) greyscale display, with white backlighting for easy reading. Localized language support, including right-to-left onscreen text, meets the needs of global users.

The Cisco IP Phone 7800 Series is also more energy-efficient and eco-friendly, to support your green initiatives. Each phone supports Power-over-Ethernet (PoE) Class 1 and Cisco's EnergyWise™. A standard power-save option reduces power consumption during off-hours, to save money and maximize energy efficiency.

The IP Phone 7800 Series portfolio is ideal for any mid-sized to large enterprise company that wants to update its phone system from a traditional analog or digital-based system to an IP Communications system. It's also an excellent choice if you're seeking to expand your voice communicatons support with your current Cisco Unified Communications solution.

Use Affordable, Full-Featured Voice Communications

Enjoy reliable, full-featured voice communications with the affordable Cisco IP Phone 7800 Series. Increase business call efficiency and productivity while reducing operating costs.

These Session Initiation Protocol (SIP) endpoints:

• Are user-friendly and ecofriendly
• Support highly secure, high-definition voice communications
• Offer advanced telephony features

The cost-effective Cisco IP Phone 7800 Series can help midsize to large enterprises meet their business needs with high-quality, full-featured voice communications. The IP Phone 7800 Series is optimal for:

• Customers who currently use traditional analog or digital phones but want to move to IP telephony
• Organizations that want to expand their investment in Cisco Unified Communications

This series adds three new phones to our portfolio that address the needs of business users such as:

• Knowledge workers
• Administrative staff
• Managers
• Contact center agents

Exceptional User Experience
Key features and capabilities that promote a superior user experience include:

• High-resolution, graphical, pixel-based, white-backlit grayscale displays, and context-sensitive soft keys
• Dedicated fixed keys for common functions such as conference, messaging, and directory, and a two-way navigation button
• Full wideband capability throughout the handset, headset, and speakerphone for clear audio
• Choice of models with 2, 4, or 16 programmable line keys
• Electronic hookswitch control for added flexibility in managing personal calls

Simple Administration
The IP Phone 7800 Series is easy to deploy and manage, with features such as:

• Power over Ethernet (PoE) Class 1 endpoints and Cisco EnergyWise options to reduce your energy costs and carbon footprint
• Enhanced customization and flexibility with a field-replaceable bezel option
• Integrated IEEE switches on all models to support traffic from a colocated PC
• Wall-mount option for common areas, such as hallways, cafeterias, and shipping and receiving, or where desk space is limited

Features and Benefits:

Table lists the features and benefits of the Cisco Unified IP Phone 7800 Series.

Feature	Benefit
Hardware Features
Ergonomic design	The phone offers an easy-to-use interface and provides a traditional telephony-like user experience.
Graphical display	White backlit, greycale, 396×162 pixel-based display (3.5") provides scrollable access to calling features and text-based XML applications.
Backlit Indicator	The phone supports backlit indicators for the audio path keys (handset, headset and speakerphone), select key, line keys, and message waiting.
Volume control	A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.
Full duplex speakerphone	Full-duplex speakerphone allows gives you flexibility in placing and receiving calls.
Replaceable bezel	Phone includes a black bezel. Optional silver bezel is also available separately.
Dual-position foot stand	The display is easy to view and the buttons and keys are easy to use. The two-position foot stand supports viewing angles of 30 degrees and 45 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.
Wall-mountable	The phone can be installed on a wall using optional wall-mount kit (available separately).
Electronic hook switch	The hookswitch can be controlled electronically with a third party headset connected to the auxiliary port.
Keys	The phone has the following keys Line keys Soft-keys Two-way navigation and select keys Hold/Resume, Transfer and Conference keys Messaging, Service and Directory keys Standard key pads Volume control toggle key Speakerphone, headset and mute keys
Power Features
IEEE PoE class 1	The phone supports IEEE 802.3af PoE (Class 1); power consumption does not exceed 3.84 watts.
Cisco power cube 3	This power cube is used as a standard Cisco IP Phone Power Supply for non-PoE deployments.
Call-Control Support
Cisco Unified Communications Manager	8.5.1 and later
Cisco Business Edition 6000	8.6.2 and later
Cisco Hosted Collaboration Solution	8.6.2 and later

Technical Specifications:

	IP Phone 7821	IP Phone 7841	IP Phone 7861
Screen	396 x 162 pixel (3.5 in. / 89 mm)	396 x 162 pixel (3.5 in. / 89 mm)	396 x 162 pixel (3.5 in. / 89 mm)
Ethernet Switch	10/100	10/100/1000	10/100
Programmable Line Keys	2	4	16
Full Duplex Speakerphone	Yes	Yes	Yes
Wideband Audio	Yes	Yes	Yes
PoE Class	1	1	1
Replaceable Bezel	Yes	Yes	Yes

Product Specifications
Signaling protocol support	Session Initiation Protocol (SIP)
Codec support	G.711a/μ, G.722, G.729ab, iLBC
Key call features support	+ Dialing (E.164) Adjustable ringing and volume levels Adjustable display contrast Auto-answer Auto-detection of headset Call forward Call history Call timer Call waiting Caller ID cBarge Corporate directory Conference Dial from the list Direct transfer Do not disturb Hold/resume Immediate divert Join Message-waiting indicator Music on hold Mute Network profiles (automatic) On- and off-network distinctive ringing Personal directory Privacy Ring tone per line appearance Shared line Silent monitoring and recording Speed dial Time and date display Transfer Voicemail
Language support	Arabic, Bulgarian, Catalan, Chinese (People's Republic of China), Chinese (Hong Kong), Chinese (Taiwan), Croatian, Czech, Danish, Dutch, English - plus localized prompts for the UK, Estonian, French, Finnish, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese (Portugal), Portuguese (Brazil), Romanian, Russian, Spanish (Spain), Slovak, Swedish, Serbian (Republic of Serbia), Serbian (Republic of Montenegro), Slovenian, Thai, Turkish
Multiple ring tones	The phone supports user-adjustable ring tones
Directories	The phone identifies incoming messages and categorizes them for users on the screen. This makes it fast and easy to return calls using direct dial-back capability. The corporate directory integrates with the Lightweight Directory Access Protocol (LDAP) standard directory
Quality-of-service (QoS) options	The phone supports CDP and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID
Security	Certificates Image authentication Device authentication File authentication Signaling authentication Media encryption using Secure Real-Time Transfer Protocol (SRTP) Signaling encryption using Transport Layer Security (TLS) Protocol Encrypted configuration files 802.1X authentication Cryptography
Configuration options	The user can configure IP address assignment statically or through the DHCP client
Physical dimensions (H×W×D)	CP-7821: 207 x 206 x 28mm (exclude foot stand) CP-7841: 207 x 206 x 28mm (exclude foot stand) CP-7861: 207 x 265 x 28mm (exclude foot stand)
Weight	CP-7821: 867g CP-7841: 868g CP-7861: 1053g
Display	3.5" 396×162 pixels
Ethernet switch	The phone has a 10/100BASE-T (The Cisco IP Phone 7821 & 7861) or a10/100/1000BASE-T (The Cisco IP Phone 7841) Ethernet connection through two RJ-45 ports, one for the LAN connection and the other for a downstream Ethernet device connection like a PC
Phone casing composition	Polycarbonate acrylonitrile butadiene styrene (ABS) textured plastic
Power requirements	The phone is an interoperable IEEE 802.3af PoE (Class 1 device); 48 VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (CP-PWR-CUBE-3=). Use of the power supply also requires the use of one of the corresponding AC country cords
Operating temperature	32 to 104ºF (0 to 40ºC)
Nonoperational temperature shock	14 to 140°F (-10 to 60°C)
Operating humidity	10% to 90%, non-condensing
Non-operating humidity	10% to 95%, non-condensing
Cosmetic	Cisco cosmetic class A
Certification and compliance	Underwriters Laboratories (UL) 60950 Canadian Standards Association (CSA) C22.2 No. 60950 EN 60950 IEC 60950 AS/NZS60950 TS 001

Documentation:

Download the Cisco IP Phone 7800 Series Datasheet (PDF).
