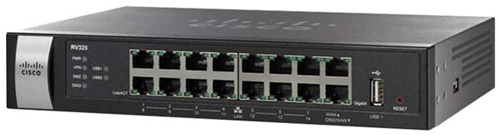

Cisco RV325 Dual Gigabit WAN VPN Router
Performance, Flexibility, Security in One Device

Overview:

Network connectivity is at the heart of every small business, and secure access, firewall protection, and high performance are the cornerstones of every Cisco Small Business RV Series Router.

The Cisco RV325 Dual Gigabit WAN VPN Router is a perfect choice for companies that need a combination of performance, security, reliability, and flexibility. You can connect its dual Gigabit Ethernet WAN ports to one service provider, for high-performance networking with load balancing.

Features and Capabilities

The Cisco RV325 Dual Gigabit WAN VPN Router offers:

• Dual Gigabit Ethernet WAN ports for load balancing and business continuity
• Built-in 14-port Gigabit Ethernet switch
• Strong security with proven stateful packet inspection (SPI) firewall and hardware encryption
• High-capacity, high-performance SSL and IP Security (IPsec) VPN capabilities
• Intuitive, browser-based device manager and setup wizards

High Performance
Easily manages large files and concurrent users to keep employees productive

Simple, highly secure access
Connects multiple locations and remote workers using VPN

Ease of use
Deploys directly out of the box; setup wizards reduce configuration time to minutes

Flexible
USB ports use 3G and 4G modems for broadband failover

Features and Benefits:

• Dual Gigabit Ethernet WAN ports for load balancing and/or business continuity
• High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users
• Dual USB ports for storage and 3G/4G modem failover
• SSL VPN and site-to-site VPN enable highly secure connectivity, making the Cisco RV320 and RV325 perfect for remote employees and multiple offices
• Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption
• Easy to set up and use with wizard-based configuration

In an ever-changing business environment, your small business network has to be powerful, flexible, accessible, and highly reliable, especially when growth is a high priority. Your network must also be able to adapt cost-effectively to these growth spurts.

The Cisco RV320 and RV325 Dual Gigabit WAN VPN Routers are the choice for any network in which performance, security, reliability, and adaptability top the list of requirements. Both support two connections to one service provider, delivering high performance by using load balancing, or to two different providers to deliver business continuity. High-capacity virtual private networks (VPNs) connect multiple offices and enable dozens of employees to access the information they need from any geographic location just as securely as if they were working at your main office.

Technical Specifications:

Cisco RV325 Specifications
Specifications	Description

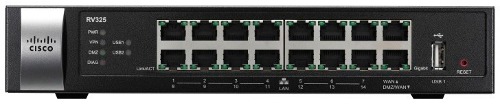

Ports	Fourteen 10/100/1000 RJ-45 ports One 10/100/1000 RJ-45 Internet port One 10/100/1000 RJ-45 DMZ/Internet port
Dual WAN	Dual Gigabit Ethernet Ports Failover Load balancing
Standards	802.3, 802.3u IPv4 (RFC 791) IPv6 (RFC 2460)
WAN Connectivity	Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent Static IP Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Transparent bridge DNS relay, Dynamic DNS (DynDNS.org, 3322.org) IPv6
Routing protocols	Static routing Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng)
Network Address Translation (NAT)	Port Address Translation (PAT) One-to-one NAT NAT traversal
Protocol binding	Protocols can be bound to a specific WAN port for load balancing
Network edge (DMZ)	DMZ port DMZ host
Dual USB 2.0 ports	3G/4G modem support
Security
Firewall	SPI firewall Denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hackerattack
Access rules	Schedule-based access rules Up to 50 entries
Port forwarding	Up to 30 entries
Port triggering	Up to 30 entries
Blocking	Java, cookies, ActiveX, HTTP proxy
Content filtering	Static URL blocking or keyword blocking
Secure management	HTTPS web access to device manager Username/password complexity enforcement
VLAN	802.1Q VLAN 17 VLANs supported
VPN
IP Security (IPsec)	25 IPsec site-to-site tunnels for branch office connectivity 25 IPsec VPN tunnels via Cisco VPN client and third-party clients such as "The GreenBow" for remote-access VPN connectivity
SSL VPN	10 SSL VPN tunnels for remote client access
PPTP	10 PPTP tunnels for remote client access
Encryption	Data Encryption Standard (DES) Triple Data Encryption Standard (3DES) Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256
Authentication	MD5/SHA1 authentication
IPsec NAT traversal	Supported for gateway-to-gateway and client-to-gateway tunnels
VPN pass-through	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec
Advanced VPN	Dead peer detection (DPD) Split DNS VPN backup Internet Key Exchange (IKE) with certificate
Quality of Service
Service-based QoS	Supports rate control or priority
Rate control	Upstream/downstream bandwidth can be configured per service
Prioritization types	Application-based priority on WAN port
Priority	Each service can be mapped to one of 3 priority levels
Performance
IPsec VPN throughput	100 Mbps
SSL VPN throughput	20 Mbps
Concurrent connections	40,000
Configuration
Web User Interface	Simple, browser-based configuration (HTTP/HTTPS)
Management
Management Protocols	Web browser (HTTP/HTTPS) Simple Network Management Protocol (SNMP) v1, v2c, and v3 Bonjour
Event Logging	Local log, Syslog, Email alert, Short Message Service (SMS)
Upgradability	Firmware upgradable through the web browser Imported/exported configuration file
Environmental
Product dimensions (W x H x D)	243 x 177 x 45 mm (9.6 x 7 x 1.8 in)

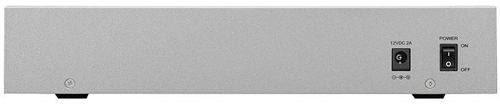

Power	12V 2A
Certifications	FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel, GOST
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	0° to 70°C (32° to 158°F)
Operating Humidity	10% to 85% noncondensing
Storage Humidity	5% to 90% noncondensing

Documentation:

Download the Cisco RV320 and RV325 Dual WAN VPN Router Datasheet (PDF).
