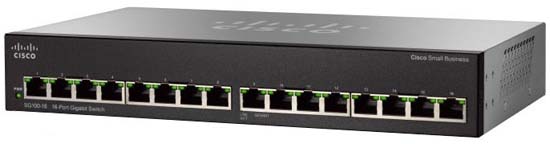

Cisco SG110-16
16-port Gigabit Switch

Overview:

Affordable, Easy-to-Use Switches for Small Business Networks, with Zero Configuration Required

Give your office network a boost of speed and performance at a low price that takes almost no time to set up. Easily build a highly reliable network to connect your computers, printers, copiers, and other office equipment. If your business is like most small companies, you do not have an IT staff to set up your network for you. Now you can have a high-performance, business-class office network that just works, right out of the box, with the Cisco 110 Series Unmanaged Switches. Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image, and video information across the network in almost no time.

Cisco 110 Series Unmanaged Switches deliver basic network connectivity and reliability for small businesses that is easy on the budget and without all the complexity. These switches provide all of the features, expandability, and investment protection you expect from Cisco, with no installation software and nothing to configure. Just plug it in, connect your computers and other business equipment, and get to work.

Cisco 110 Series Unmanaged Switches, part of the Cisco Small Business networking solutions, are a line of unmanaged switches that provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity to connect your small business office. Available in desktop and rack-mount models, these switches are designed to suit any office space with basic network needs and to optimize power efficiency. They use less power and provide the robust, reliable connectivity your business demands, as well as support for advanced features such as quality of service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. A business-class, affordable network solution, Cisco 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.

Highlights

• Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry applications
• 5- to 24-port models that are desktop or rack mountable
• Power over Ethernet models to provide power to IP phones, access points, and other devices
• Works right out of the box: plug and play and no setup

Features and Benefits:

Cisco 110 Series switches provide an easy-to-use solution for your small business network.

Ease of Use

Cisco 110 Series switches work right out of the box, with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco 110 Series switches are also designed to immediately accommodate all of the devices in your network, including:

• Support for 10 megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps) devices in the same network
• Automatic cable detection, so you do not have to worry about using the wrong cable type
• Compatibility with network devices from other vendors

Simple Setup

Designed for small office spaces, Cisco 110 Series switches are available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.

High Performance

Cisco 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

Reduced Energy Costs

Cisco 110 Series switches are designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. Most of the switches have no fans, so they run silently and unobtrusively while lowering energy costs.

Power over Ethernet (PoE)

Cisco 110 Series switches are available with PoE ports on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.

Support for Advanced Technologies

All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.

Peace of Mind

Cisco 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.

Technical Specifications:

Cisco 110 Series Specifications
Performance
Switching capacity and forwarding rate	Product Name	Switching Capacity	Forwarding Capacity
	SF110D-05	1 Gbps	0.74 mpps
	SF110D-08	1.6 Gbps	1.4 mpps
	SF110D-08HP	1.6 Gbps	1.2 mpps
	SF110D-16	3.2 Gbps	1.4 mpps
	SF110-16	3.2 Gbps	1.4 mpps
	SF110D-16HP	3.2 Gbps	1.4 mpps
	SF110-24	4.8 Gbps	3.6 mpps
	SF112-24	8.8 Gbps	6.5 mpps
	SG110D-05	10 Gbps	7.4 mpps
	SG110D-08	16 Gbps	11.9 mpps
	SG110D-08HP	16 Gbps	11.9 mpps
	SG110-16	32 Gbps	23.8 mpps
	SG110-16HP	32 Gbps	23.8 mpps
	SG110-24	48 Gbps	35.7 mpps
	SG110-24HP	48 Gbps	35.7 mpps
	SG112-24	48 Gbps	35.7 mpps
Capabilities
Head-of-line (HOL) blocking	HOL blocking prevention
Jumbo frame	9216 bytes
Quality of service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Standards
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Cabling type	Category 5e or better
LED indicators	System/PWR, link/activity, 100M,*PoE, *mMax PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC* *if present
Physical Interfaces
Ports	10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord
Power supply	SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Lock slot	Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
Physical Specifications
Physical Dimensions	Model Name	Unit Dimensions (W x H x D)
	SF110D-05	3.65 x 1.06 x 3.57 inches (92.6 x 27 x 90.6 mm)
	SF110D-08	5.12 x 1.06 x 5.12 inches (130 x 27 x 130 mm
	SF110D-08HP	6.29 x 1.18 x 5.05 inches (160 x 30 x 128.5 mm)
	SF110D-16	5.12 x 1.52 x 5.12 inches (130 x 38.5 x 130 mm)
	SF110-16	11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
	SF110D-16HP	6.29 x 3.54 x 1.69 inches (160 x 90 x 43 mm)
	SF110-24	11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
	SF112-24	17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm)
	SG110D-05	4.33 x 1.18 x 3.93 inches (110 x 30 x 110 mm)
	SG110D-08	5.51 x 1.31 x 5.51 inches (140 x 33.35 x 140 mm)
	SG110D-08HP	6.29 x 1.18 x 5.05 inches (160 x 30 x 128.5 mm)
	SG110-16	11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
	SG110-16HP	11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
	SG110-24	17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm)
	SG110-24HP	17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm)
	SG112-24	11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
Weight	Model Name	Unit weight
	SF110D-05	0.47 lb. (0.22 kg)
	SF110D-08	0.83 lb. (0.38 kg)
	SF110D-08HP	1.2 lb. (0.545 kg)
	SF110D-16	1.03 lb. (0.46 kg)
	SF110-16	2.79 lb. (1.25 kg)
	SF110D-16HP	0.99 lb. (0.45 kg)
	SF110-24	2.91 lb. (1.32 kg)
	SF112-24	4.93 lb. (2.00 kg)
	SG110D-05	0.70 lb. (0.32 kg)
	SG110D-08	0.94 lb. (0.43 kg)
	SG110D-08HP	1.2 lb. (0.55 kg)
	SG110-16	3.15 lb. (2.13 kg)
	SG110-16HP	4.15 lb. (1.43 kg)
	SG110-24	3.59 lb. (1.63 kg)
	SG110-24HP	4.59 lb. (2.43 kg)
	SG112-24	5.05 lb. (2.3 kg)
Ports
Ports	Model Name
	SF110D-05	5 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF110D-08	8 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF110D-08HP	8 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF110D-16	16 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF110-16	16 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF110D-16HP	16 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF110-24	24 RJ-45 connectors for 10BASE-T/100BASE-TX
	SF112-24	24 RJ-45 connectors for 10BASE-T/100BASE-TX; with 2 combo mini-GBIC slots
	SG110D-05	5 RJ-45 connectors for 10BASE-T/100BASE-TX
	SG110D-08	8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
	SG110D-08HP	8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
	SG110-16	16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
	SG110-16HP	16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
	SG110-24	24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
	SG110-24HP	24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
	SG112-24	24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
Power over Ethernet (PoE)	Model Name	Power Dedicated to PoE	Number of PoE Ports
	SF110D-08HP	32 Watts	4
	SF110D-16HP	64 Watts	8
	SG110D-08HP	32 Watts	4
	SG110-16HP	64 Watts	8
	SG110-24HP	100 Watts	12
Fan/fanless models	All models have no fans and are fanless, except for SG100-24HP
Mounting options	Desktop or rack mount
Physical security lock	Kensington lock slot
System memory	128-MB RAM 128-MB Flash
Package Contents	Cisco 110 Series switch Power cord/power adapter Quick Start Guide Mounting hardware
Minimum Requirements	Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet Category 5 or better Ethernet network cable Network interface card for each computer
Warranty	Limited lifetime
Environmental
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 158°F (-20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing

Documentation:

Download the Cisco 110 Series Unmanaged Switches Datasheet (PDF).
