Cisco TelePresence System EX Series
Transform Your Desktop

Overview:

The Cisco TelePresence™ EX Series transforms the workplace by combining work, communications, and collaboration-all on the desktop with just the touch of a finger.

The EX Series is an all-in-one tool that streamlines the desktop so you can fluidly move from individual work on your laptop, to a quick video call with a colleague, to problem-solving over shared spreadsheets. Tight integration with Cisco Unified Communications Manager also provides EX Series users with powerful video and voice functionality. The series comprises the EX90 and the EX60: The EX90 is designed for the team leader or manager for immediate presence with customers, partners, and employees, while the EX60 can be scaled throughout the organization, designed especially for the knowledge worker or individual contributor.

The EX Series is part of the broad portfolio of Cisco TelePresence systems offering immersive, multipurpose, and personal endpoints to meet the needs of organizations of all sizes. Cisco TelePresence technology powers the new way of working where everyone, everywhere can be more productive through face-to-face collaboration.

Transform Your Desktop

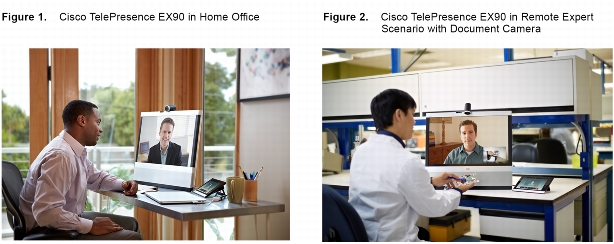

The Cisco TelePresence EX Series is a family of personal telepresence systems for the desktop. It lets you and your colleagues instantly collaborate face to face, whether you are separated by a hallway, a street, or several time zones.

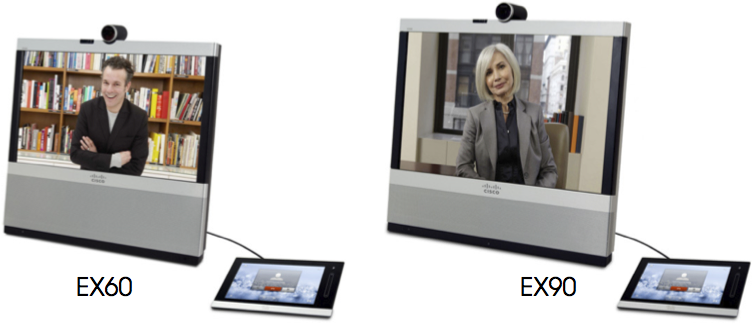

Comprised of the Cisco TelePresence EX90 for executives and the EX60 for managers and knowledge workers, the EX Series offers comfortable and natural communications with assured quality. Tight integration with Cisco Unified Communications Manager (UCM) also provides EX Series users with both video and voice functionality for a powerful collaboration device.

Natural and intuitive, the Cisco TelePresence Touch 8 is the user interface for the EX Series. You can make and manage telepresence calls, share content, and choose layouts with the simple glide of a finger.

The Cisco TelePresence EX Series offers a full, high-definition 24-inch or 21.5-inch screen. You can use it as both a PC monitor and a telepresence system, giving you more flexibility at your desk.

Other features include:

• 1080p30 and 720p60 video resolution for an optimal telepresence experience at the desk
• Natural, transparent collaboration with one-touch sharing of HD content, and a built-in document camera feature
• Integration with UCM to enable features such as voicemail indicator, single number reach, and ad-hoc conferencing
• Immediate connectivity to anyone regardless of system-soft client, immersive telepresence system, a meeting room, etc.

No matter what your role, the Cisco TelePresence EX Series can become an integral part of your workflow. It helps to enable faster decision making, enhance relationships, and improve efficiency.

Connect face to face at a moment's notice, with Cisco TelePresence EX Series.

Features and Benefits:

• A high-quality screen with clear high-definition (HD) resolution enables a transparent, all-in-one device to work, meet, and collaborate (24" or 21.5").
• Video resolutions of 1080p30 and 720p60 bring the Cisco TelePresence experience to the desk.
• Integration with Cisco Unified Communications Manager enables rich features including voicemail indicator, single number reach, and ad-hoc conferencing.
• The Cisco TelePresence Touch 8 user interface allows for simple control.
• Collaboration is natural with transparent one-touch sharing of high-definition content and a built-in document camera.
• A Cisco TelePresence PrecisionHD camera enables video clarity and optimal F1.7, 45-65° or 50° field of view.
• H.323 and Session Initiation Protocol (SIP) with bandwidth up to 6 Mbps point-to-point provide the possibility to establish calls with very high quality.
• Dual front speakers offer superior audio, including an integrated subwoofer on the EX90.
• A wideband handset is included; you can also add a headset input for privacy (wired or Bluetooth wireless).
• The EX60 is wall-mountable with select VESA brackets. An external wall mount solution is also available for the EX90 through Milestone http://cdn.chiefmfg.com/Flyers-Brochures/Chief_Cisco_flyer.pdf.
• The EX90 supports embedded MultiSite which brings together up to four locations into one call.
• Dual display capability (HDMI out) is also available on the EX90 to enable a second display that can be dedicated to content.
• The system is standards-based for immediate connectivity to anyone regardless of system, from a soft client to immersive telepresence system, to a meeting room around the globe.

Technical Specifications:

Product Specifications
Product Compatibility	Fully compatible with standards-compliant telepresence and video systems
Software Compatibility	Cisco TelePresence Software Version TC3.1 (EX90) and TC4.0 (EX60) or later, or TE 6.0
Components	Fully integrated unit including: Codec Display Camera Microphone and speakers Cables including: VGA-to-DVI-I cable, DVI-D cable, 3.5-mm jack audio cable, LAN cable, power adapter, and power cable
Display	EX60 21.5-in. LCD monitor (with LED backlight) Resolution: 1920 x 1080 (16:9) Contrast ratio: 1000:1 Viewing angle: 170° Response time: 5 ms Brightness: 225cd/m2 5°-15° tilt	EX90 24-in. LCD monitor Resolution: 1920 x 1200 (16:10) Contrast ratio: 1000:1 Viewing angle: 160° Response time: 5 ms Brightness: 300cd/m2 5°-15° tilt
PC and second-source video input	DVI-I EX90: HDMI in
Supported PC input resolutions	EX90: SVGA (800 x 600) to WUXGA (1920 x 1200) EX60: SVGA (800 x 600) to 1080p (1920 x 1080)
Camera	EX60 Horizontal field of view: 50° Vertical field of view: 29° Focus distance 0.1-infinity Cisco TelePresence PrecisionHD design Resolutions: 1080p30 and 720p60 Auto focus Integrated privacy shutter Document camera mode Multicoated all-glass optics 1/3-in., 2.1 megapixel CMOS sensor	EX90 Horizontal field of view: 45°-65° Vertical field of view: 40°-27° Focus distance 0.3-infinity Optical, motorized zoom Cisco TelePresence PrecisionHD design Resolutions: 1080p30 and 720p60 Auto focus Integrated privacy shutter Document camera mode Multicoated all-glass optics 1/3-in., 2.1 megapixel CMOS sensor
Audio system	Two stereo front speakers Integrated full-range microphone One 3.5-mm line-in jack for PC or other audio source Two 3.5-mm jack for headset Wideband handset	Bluetooth module 2.1 + EDR Integrated subwoofer (EX90 only) Support for Cisco TelePresence Table Microphone 20 (EX90 only) HDMI audio input/output (EX90 only)
User interface	Cisco TelePresence Touch 8 Eight-inch projected capacitive touch screen Resolution: 800 x 480
Language support	English, Chinese-S, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Russian, Spanish, Swedish, Portuguese-Brazilian, Czech*, Polish*, Chinese-Traditional*, Turkish* *Not supported in TE software
Physical dimensions (H x L x D)	Cisco TelePresence EX90 main unit: 21.4 x 22.3 x 6.8 in. (54.5 x 56.7 x 17.3 cm) Cisco TelePresence EX60 main unit: 20.0 x 20.5 x 5.4 in. (50.8 x 52 x 13.8 cm)	Cisco TelePresence Touch 8: 1.7 x 9.0 x 5.7 in. (4.4 x 22.8 x 14.5 cm) Cisco TelePresence Touch 8 with handset: 3.0 x 11.4 x 7.4 in. (7.7 x 29.0 x 18.7 cm) Cable length: 47 in. (120 cm)
Weight	Cisco TelePresence EX90 main unit: 24.2 lb (11.0 kg) Cisco TelePresence EX60 main unit: 12.9 lb (5.85 kg)	Cisco TelePresence Touch 8: 1.4 lb (0.64 kg). Cisco TelePresence Touch 8 with handset: 2.1 lb (0.94 kg)
Power	Autosensing power supply 100-240 VAC, 50/60 Hz EX90: 150 watts max EX60: 75 watts max	Power consumption: EX90 with Touch 8: In video call: 110W, In standby: 58W EX60 with Touch 8: In video call: 46W, In standby: 31W
Temperature range	Operating temperature and humidity: Ambient temperature: 32 to 95°F (0 to 35°C) Relative humidity (RH): 10 to 90% Storage and transport temperature at RH 10-90% (noncondensing): -4 to 140°F (-20 to 60°C)
Approvals and compliance	Directive 2006/95/EC (Low-Voltage Directive)-Standard EN 60950-1 Directive 2004/108/EC (EMC Directive)-Standard EN 55022, Class A-Standard EN 55024-Standard EN 61000 3-2/-3-3 Approved according to UL 60950-1 and CSA 60950-1-07 Complies with FCC15B Class A
Video and Audio Specifications
Bandwidth	H.323/SIP up to 6 Mbps point-to-point
Video standards	H.261 H.263 H.263+ H.264
Video features	Widescreen: 16:9 Advanced screen layouts Intelligent video management Local auto layout
Live video resolutions (encode/decode)	176 x 144@30 fps (QCIF) 352 x 288@30 fps (CIF) 512 x 288@30 fps (w288p) 576 x 448@30 fps (448p) 768 x 448@30 fps (w448p) 704 x 576@30 fps (4CIF) 1024 x 576@30 fps (w576p) 640 x 480@30 fps (VGA) 800 x 600@30 fps (SVGA) 1024 x 768@30 fps (XGA) 1280 x 1024@30 fps (SXGA) 1280 x 720@30 fps (720p30)	1280 x 768@30 fps (WXGA) 1920 x 1080@30 fps (1080p30)* 1440 x 900@30 fps (WXGA+)* 1472 x 1080@30 fps (SXGA+)* 1680 x 1050@30 fps (WSXGA+)* 1600 x 1200@30 fps (UXGA)* 512 x 288@60 fps (w288p60)* 768 x 448@60 fps (w448p60)* 1024x576@60 fps (w576p60)* 1280x720@60 fps (720p60)** Requires premium resolution option Only EX90: 1920x1200@25fps (WUXGA)*
Audio standards	G.711 G.722 G.722.1 64/128 kbps MPEG4 AAC-LD AAC-LD stereo
Audio features	CD-quality 20-kHz stereo Acoustic echo canceling Automatic gain control Automatic noise reduction Active lip synchronization
Main channel frame rate	EX60 only Up to 1080p30 Up to 720p60	EX90 only Up to 1080p30 Up to 720p60
Content channel frame rate	EX60 only Up to UXGAp30 Up to 1080p30	EX90 only Up to 720p15
Dual stream	H.239 (H.323) dual stream BFCP (SIP) dual stream EX90 supports resolutions up to 1080p in both main stream and dual stream simultaneously EX60 supports resolutions up to 720p in both main stream and dual stream simultaneously
Network, Security and Management Specifications
Protocols	H.323 SIP
Network interfaces	Internal 2-port Ethernet switch One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for PC One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for LAN
Other interfaces	Bluetooth support Two USB device for future applications (EX90) One USB device for future applications (EX60)
IP network features	Domain Name System (DNS) lookup for service configuration Differentiated Services (QoS) IP adaptive bandwidth management (including flow control) Auto gatekeeper discovery Dynamic playout and lip-sync buffering H.245 DTMF tones in H.323 Date and time support with Network Time Protocol (NTP) Packet loss-based down-speeding DNS-based URI dialing TCP/IP Dynamic Host Configuration Protocol (DHCP) IEEE 802.1x network authentication IEEE 802.1q VLAN IEEE802.1p QoS and class of service (CoS) ClearPath
IPV6 Network support	Single call stack support for both H323 and SIP Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ Support for both static and auto-configuration (stateless address auto-configuration)
Firewall traversal	Cisco TelePresence Expressway Technology H.460.18 and H.460.19 Firewall Traversal
Supported Infrastructure	Cisco Communications Manager 5.1 and newer (8.6.2 and newer recommended) Cisco TelePresence Video Communication Server (VCS) Cisco WebEx TelePresence Server
Embedded encryption	H.323/SIP point-to-point Standards-based: H.235v3 and Advanced Encryption Standard (AES) Automatic key generation and exchange Supported in dual stream
Security features	Management via Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol IP administration password Administrator Menu password Disable IP services Network settings protection
MultiSite	EX90 only 4-way 720p30 Continuous Presence (CP) MultiSite Full individual audio and video transcoding Individual layouts for each participant (CP layout without self-view feature) H.323/SIP/VoIP in the same conference Best Impression (Automatic CP layouts) H.264, encryption and dual stream from any site IP down-speeding Dial In/Dial out
Multipoint support	Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and Cisco TelePresence MCU) Ability to natively join multipoint conferences hosted on Cisco TelePresence Multipoint Switch (CTMS) EX90 only: Four-way embedded SIP/H.323 Multipoint, reference MultiSite
System management	Support for the Cisco TelePresence Management Suite Total management through embedded Simple Network Management Protocol (SNMP), Telnet, SSH, XML, and Simple Object Access Protocol (SOAP) Remote software upload: Through web server, Secure Copy Protocol, HTTP, and HTTPS
Directory services	Support for local directories (My Contacts) Corporate directory Unlimited entries using server directory supporting Lightweight Directory Access Protocol (LDAP) and H.350 Unlimited number for corporate directory (available with Cisco TelePresence Management Suite Local directory: 200 numbers Received calls with date and time Placed calls with date and time Missed calls with date and time

Documentation:

Download the Cisco TelePresence EX Series Datasheet (PDF).
