Catalyst 9200 Series Fixed Uplink Switches
Improve network performance and simplify IT operations

Cisco Catalyst 9200 Series Fixed Uplink Switches

Cisco Products

Cisco Catalyst 9200L Series Switches with Network Essentials License

Cisco Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials

#C9200L-24T-4G-E
Get a Quote!

Cisco Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials

#C9200L-24P-4G-E
Get a Quote!

Cisco Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials

#C9200L-24T-4X-E
Get a Quote!

Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials

#C9200L-24P-4X-E
Get a Quote!

More pricing below, click here!

Cisco Catalyst 9200 Series Switches :

Secure

Protect your network and your data with advanced security features like link encryption and segmentation.

Resilient

Boost uptime with field-replaceable unit (FRU) power supplies and fans, modular uplinks, cold patching, and Perpetual Power over Ethernet (PoE).

Uncomplicated

Simplify IT operations with Cisco DNA Center management, automated provisioning, and seamless software upgrades and patching.

Wireless-ready

Be ready for increased wireless bandwidth demands with greater stacking bandwidth, higher-capacity uplinks, and multigigabit ports.

Extend intent-based networking everywhere

Our best-in-class security portfolio is anchored by Talos, Trustworthy Solutions, MACsec encryption, and segmentation. Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

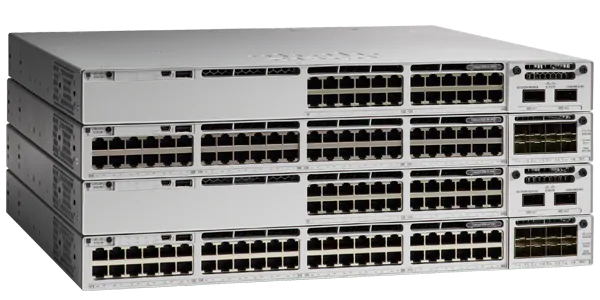

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring

Product highlights

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data, PoE+ or mGig
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access): ◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE) ◦ Network assurance and improved resolution time through Cisco DNA Center
Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

Model Comparison:

Catalyst 9200 (enhanced VN)	Catalyst 9200 and 9200L multigigabit	Catalyst 9200 multigigabit	Catalyst 9200 (modular uplinks)	Catalyst 9200L (fixed uplinks)	Cisco Catalyst 9200CX
C9200-24PB, C9200-48PB SKUs	C9200L-24PXG, C9200L-48PXG SKUs	C9200-24PXG, C9200-48PXG SKUs	C9200-24T/P, C9200-48T/P/PL SKUs	C9200L-24T/P, C9200L-48T/P/PL SKUs	8 or 12 GE ports with line-rate forwarding performance
Support for 32 virtual networks (VNs) for improved Cisco SD-Access implementation	Wireless bandwidth optimization with 8 or 12 multigigabit ports up to 10G	Wireless bandwidth optimization with 8 or 12 multigigabit ports up to 10G	Swappable network modules with 4x1G, 4x1/10G, 2x25G, or 2x40G uplinks	Fixed uplinks of 4x1G, 4x1/10G, or 2x1/10/25G	2 10G SFP+ uplink ports
160-Gbps stacking bandwidth	Up to 160-Gbps stacking bandwidth	Up to 160-Gbps stacking bandwidth	160-Gbps stacking bandwidth	80-Gbps stacking bandwidth	PoE+ support with up to 240W of PoE budget
Full Fast and Perpetual PoE+	Full Fast and Perpetual PoE+	Full Fast and Perpetual PoE+	Data and full Fast and Perpetual PoE+ options	Data and full Fast and Perpetual PoE+ options	Enhanced Limited Lifetime Warranty (E-LLW)
FRU redundant power supplies and fans	Fixed or modular uplinks	Fixed or modular uplinks	FRU redundant power supplies and fans	Redundant power supplies and fans

Specifications Catalyst 9200 Series:

Switch Models and Configurations

Models	FRU Power Supply	FRU Fans	Modular Uplinks	Stacking Bandwidth Support	SD-Access Support 1
Modular uplink models (C9200 Enhanced VN SKUs)				160 Gbps	Yes (32 Virtual Networks)
Modular uplink models (C9200 SKUs)				160 Gbps	Yes (4 Virtual Networks)
Fixed uplink Models (C9200L SKUs)		X	X	80 Gbps	Limited (1 Virtual Network)
Compact Models(C9200CX SKUs)	X	X	X	X	Yes (16 Virtual Networks)

Individual Switch Configuration Specifications

Switch model	Downlinks total 10/100/1000 or PoE+ copper ports	Uplink configuration	Default primary AC power supply	Fans
Modular uplink models
C9200-24T	24 ports data	Modular uplink options	PWR-C6-125WAC	FRU redundant
C9200-24P	24 ports full PoE+	Modular uplink options	PWR-C6-600WAC	FRU redundant
C9200-24PB	24 ports full PoE+	Modular uplink options	PWR-C6-600WAC	FRU redundant
C9200-24PXG	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	Modular uplink options	PWR-C6-600WAC	FRU redundant
C9200-48T	48 ports data	Modular uplink options	PWR-C6-125WAC	FRU redundant
C9200-48P	48 ports full PoE+	Modular uplink options	PWR-C6-1KWAC	FRU redundant
C9200-48PL	48 Ports partial PoE+	Modular uplink options	PWR-C6-600WAC	FRU redundant
C9200-48PB	48 ports full PoE+	Modular uplink options	PWR-C6-1KWAC	FRU redundant
C9200-48PXG	48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G)	Modular uplink options	PWR-C6-1KWAC	FRU redundant

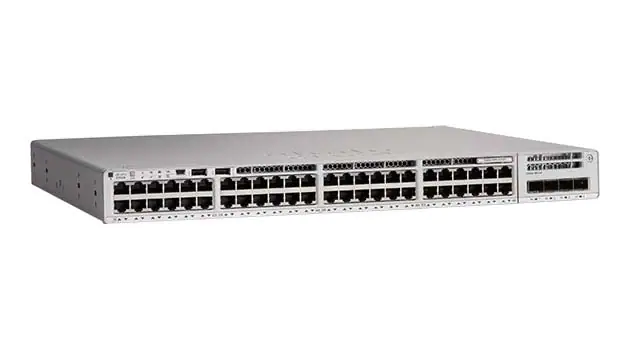

Fixed uplink models
C9200L-24T-4G	24 ports data	4x 1G fixed uplinks	PWR-C5-125WAC	Fixed redundant
C9200L-24P-4G	24 ports full PoE+	4x 1G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48T-4G	48 ports data	4x 1G fixed uplinks	PWR-C5-125WAC	Fixed redundant
C9200L-48P-4G	48 ports full POE+	4x 1G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
C9200L-48PL-4G	48 Ports partial PoE+	4X 1G Fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-24T-4X	24 ports data	4x 1/10G fixed uplinks	PWR-C5-125WAC	Fixed redundant
C9200L-24P-4X	24 ports full PoE+	4x 1/10G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48T-4X	48 ports data	4x 1/10G fixed uplinks	PWR-C5-125WAC	Fixed redundant
C9200L-48P-4X	48 ports full PoE+	4x 1/10G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
C9200L-48PL-4X	48 Port partial PoE+	4X 1/10G Fixed Uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-24PXG-4X	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	4x 1/10G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48PXG-4X	48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G)	4x 1/10G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
C9200L-24PXG-2Y	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	2x 1/10/25G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48PXG-2Y	48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G)	2x 1/10/25G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
Compact models
C9200CX-12T-2X2G	12 ports data	2x 1G copper, 1x 1G CU PD 802.3bt Class 8, 2x 10G SFP+ fixed uplinks	80W External Power Adapter	Adapter Fanless
C9200CX-12P-2X2G	12 ports full PoE+	2x 1G copper, 2x 10G SFP+ fixed uplinks	310W internal	Adapter Fanless
C9200CX-8P-2X2G	8 ports PoE+	2x 1G copper, 2x 10G SFP+ fixed uplinks	310W internal	Adapter Fanless

Network modules

Cisco Catalyst 9200 Series switches come with modular or fixed uplinks as indicated in Table 1. With modular SKUs, the field-replaceable network modules provide infrastructure investment protection by allowing a nondisruptive migration from 1G to 10G and beyond.

Network module	Description
C9200-NM-2Y	2 x 25G Network Module
C9200-NM-2Q	2 x 40G Network Module
C9200-NM-4G	4x 1G network module
C9200-NM-4X	4x 1G/10G network module
C9200-NM-BLANK	No network module

Documentation:

Download the Catalyst 9200 Series Switches Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.

Cisco Products

Cisco Catalyst 9200L Series Switches with Network Essentials License

Cisco Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials

#C9200L-24T-4G-E
Get a Quote!

Cisco Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials

#C9200L-24P-4G-E
Get a Quote!

Cisco Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials

#C9200L-24T-4X-E
Get a Quote!

Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials

#C9200L-24P-4X-E
Get a Quote!

Cisco Catalyst 9200L Series Switches with Network Advantage License

Cisco Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials

#C9200L-48T-4G-E
Get a Quote!

Cisco Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials

#C9200L-48T-4X-E
Get a Quote!

Cisco Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials

#C9200L-48P-4X-E
Get a Quote!

Cisco Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Essentials

#C9200L-48PL-4X-E
Get a Quote!

Cisco Catalyst 9200L Series Switches with Network Essentials License

Cisco Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Advantage

#C9200L-24T-4G-A
Get a Quote!

Cisco Catalyst 9200L Series Switches with Network Advantage License

Cisco Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage

#C9200L-24P-4G-A
Get a Quote!

Cisco Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage

#C9200L-24T-4X-A
Get a Quote!

Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage

#C9200L-24P-4X-A
Get a Quote!

Cisco Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage

#C9200L-48T-4G-A
Get a Quote!

Cisco Catalyst 9200L Series Switches with Network Essentials License

Cisco Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage

#C9200L-48T-4X-A
Get a Quote!

Cisco Catalyst 9200L Series Switches with Network Advantage License

Cisco Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage

#C9200L-48P-4X-A
Get a Quote!

Cisco Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Advantage

#C9200L-48PL-4X-A
Get a Quote!

Cisco Catalyst 9200 Series Power Supply Accessories

125W AC Config 5 Power Supply

#PWR-C5-125WAC
List Price: ~~$1,975.49~~
Our Price: $1,319.40

600W AC Config 5 Power Supply

#PWR-C5-600WAC
List Price: ~~$2,822.13~~
Our Price: $1,884.28

125W AC Config 6 Power Supply

#PWR-C6-125WAC
List Price: ~~$1,058.30~~
Our Price: $707.84

600W AC Config 6 Power Supply

#PWR-C6-600WAC
List Price: ~~$1,693.28~~
Our Price: $1,131.44

Blank Module

#PWR-C5-BLANK=
List Price: ~~$67.21~~
Our Price: $45.03

AC power cord for Cisco Catalyst (North America)

#CAB-TA-NA=
List Price: ~~$59.14~~
Our Price: $42.50

Cisco Catalyst 9200 Series Rackmount / Accessory Kits

Accessory kit with 19 inch Type 1 rack mount

#ACC-KIT-T1=
List Price: ~~$73.29~~
Our Price: $52.34

19, 23, 24 inch and ETSI Type 1 rack mount kit

#RACK-KIT-T1=
List Price: ~~$339.35~~
Our Price: $237.51
