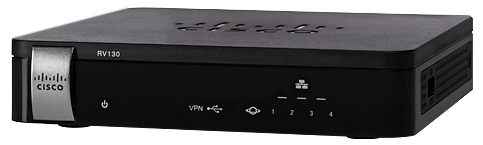

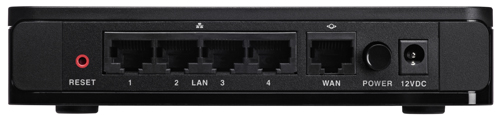

Cisco RV130 VPN Router
Business-Class Features in an Affordable Router
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
The Cisco RV130 VPN Router is an affordable, easy-to-use device that combines high-performance network connectivity to multiple offices and remote employees with essential business-class features. These include Gigabit Ethernet, Quality of Service, IPv6 support, and advanced security, the features you need to successfully build your small business network.
Features and Capabilities
Get the features you need to successfully build your small business network. The RV130 includes:
- Integrated 4-port Gigabit Ethernet switch
- USB 3G/4G failover
- IP Security (IPsec) VPN for flexible remote access
- Support for separate virtual networks and wireless guest access
- Intuitive, browser-based device manager
The RV130 is easy to deploy and configure, and comes with a limited lifetime warranty.
Features and Benefits:
- High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users
- USB port for 3G/4G modem failover or alternative primary connectivity
- IP Security (IPsec) site-to-site VPN helps enables secure connectivity for remote employees and multiple offices
- Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption
- Easy to set up and use with wizard-based configuration
As business applications become more powerful and complex, they are also increasing demands on your network. To stay productive and keep in touch with customers, business partners, and colleagues, your employees need reliable, high-performance connectivity - inside and outside the office.
The Cisco RV130 VPN Router delivers highly secure broadband connectivity and remote access for multiple offices and remote workers. Designed specifically for small businesses, it delivers a comprehensive combination of business-class features and ease of use in one affordable solution.
The Cisco RV130 features a built-in 4-port Gigabit Ethernet managed switch that lets you connect network devices and transfer files and data at high speed. Intelligent quality of service (QoS) features let you prioritize network traffic to keep critical network applications like voice and video running at their best.
To help you connect remote users or additional offices, the Cisco RV130 offers enterprise-class encryption and authentication, including support for IPsec and Point-to-Point Tunneling Protocol (PPTP) VPN client connections and IPsec gateway-to-gateway VPN tunnels. The RV130 also features a USB port for 3G/4G Broadband failover or for alternative uses can be used for primary connectivity.
Easy to set up and use right out of the box, the router features a simple wizard-based configuration to get you up and running in minutes.
With the Cisco RV130 VPN Router, you can take advantage of enterprise-class performance, security, and reliability - at a price your small business can afford.
Technical Specifications:
| Cisco RV130 Specifications | |
|---|---|
| Specifications | Description |
| Standards | IEEE, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree), 802.1Q (VLAN),IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
| Ports | LAN, WAN, USB |
| Switch | Power button (on/off) |
| Buttons | Reset |
| Cabling Type | Category 5e or better |
| LEDs | Power, VPN, USB, WAN, LAN (ports 1-4) |
| Operating System | Linux |
| Network | |
| Network Protocols |
|
| LAN | Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch |
| WAN | One (1) 10/100/1000 Mbps Gigabit WAN port |
| Routing Protocols |
|
| Network Address Translation (NAT) Protocol | Port Address Translation (PAT), Network Address Port Translation (NAPT) |
| VLAN Support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 5 active VLANs (3-4096 range) |
| Pv6 |
|
| Network Edge (DMZ) | Software configurable to any LAN IP address |
| Layer 2 | 802.1Q-based VLANS, 4 active VLANS |
| Security | |
| Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ DoS attacks prevented:
Block Java, Cookies, ActiveX, HTTP Proxy |
| Access Control | IP access control lists |
| Content Filtering | Static URL blocking or keyword blocking |
| Secure Management | HTTPS, username/password complexity |
| User Privileges | 2 levels of access: admin and guest |
| VPN | |
| Gateway-to-gateway IPsec VPN | 10 gateway-to-gateway IPsec tunnels |
| Client-to-gateway IPsec VPN | 10 client-to-gateway IPsec tunnels using TheGreenBow and ShrewSoft VPN client |
| PPTP VPN | 10 PPTP tunnels for remote client access |
| Encryption | Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) |
| Authentication | MD5/SHA1 |
| VPN Pass-through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of Service | |
| QoS |
|
| Jumbo Frame Support | Supports Jumbo Frame on Gigabit ports-at least 1536B |
| Performance | |
| NAT Throughput | 800 Mbps |
| Concurrent Sessions | 12,000 |
| IPsec VPN Throughput (3DES/AES) | 50 Mbps |
| Configuration | |
| Web User Interface | Simple, browser-based configuration (HTTP/HTTPS) |
| Management | |
| Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) |
| Event Logging | Local, syslog, email alerts |
| Network Diagnostics | Ping, Traceroute, and DNS Lookup |
| Upgradability | Firmware upgradable through web browser, imported/exported configuration file |
| System Time | Supports NTP, daylight savings, manual entry |
| Languages | GUI supports English, French, Italian, German, and Spanish |
| Environmental | |
| Power | 12V 2A |
| Certifications | FCC class B, CE, IC |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 70°C (-4° to 158°F) |
| Operating Humidity | 10 to 85 percent noncondensing |
| Storage Humidity | 5 to 90 percent noncondensing |
Documentation:
Download the Cisco RV130 VPN Router Datasheet (PDF).
