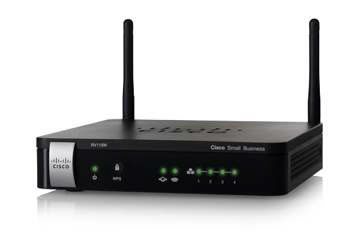

Cisco Small Business RV110W Wireless-N VPN Firewall
Simple, highly secure wired and wireless connectivity

Overview:

The Cisco® RV110W Wireless-N VPN Firewall provides simple, affordable, highly secure, business-class connectivity to the Internet for small offices/home offices and remote workers.

The Cisco RV110W combines wired and wireless connectivity for small offices and remote workers with a highspeed, 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its combination of business-class features, support for virtual networks to enable highly secure guest access, simple installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer employees to a new level.

It combines business-class features, simple installation, and a quality user experience to provide basic connectivity for small businesses with five or fewer employees.

The RV110W Wireless-N VPN Firewall also features:

• A proven firewall with support for access rules and advanced wireless security to help keep business assets safe
• IP Security (IPsec) VPN support for highly secure remote-access client connectivity
• Support for separate virtual networks to allow you to set up highly secure wireless guest access
• Native support for IPv6, which allows you to take advantage of future networking applications and operating systems, without an equipment upgrade
• Support for Cisco Small Business QuickVPN software

Features and Benefits:

The Cisco RV110W Wireless-N VPN Firewall features:

• High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing employees to stay productive while away from their desks
• Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras, and other devices
• Proven firewall with access rules support and advanced wireless security helps keep business assets safe
• Quality of service (QoS) support for enhanced voice, video, and data traffic
• Support for separate "virtual" networks, enabling you to control access to sensitive information and to set up highly secure wireless guest access

• IP Security (IPsec) and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure remote access connectivity for Windows and Mac OS computers
• Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new technologies
• Simplified configuration through an intuitive, browser-based device manager
• Support for the Cisco FindIT Network Discovery Utility

Technical Specifications:

Product Specifications for the Cisco 100 Wireless Series
Specifications	Description
Routing	Static routing Dynamic routingRouting Information Protocol (RIP) v1 and v2 Inter-VLAN routing
Layer 2	802.1Q -based VLANs 4 active VLANs (3 to 4094 range)
Network	Dynamic Host Configuration Protocol (DHCP) server Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Layer 2 Tunneling Protocol (L2TP) DNS proxy DHCP relay agent Internet Group Management Protocol (IGMP) proxy and multicast forwarding Rapid Spanning Tree Protocol (RSTP) Dynamic DNS (DDNS), TZO.com, DynDNS.com, 3322.org Network Address Translation (NAT), Port Address Translation (PAT) Port management Port Mirroring Software-configurable network edge (DMZ) to any LAN IP address
IPv6	Dual-stack IPv4 and IPv6 6to4 tunneling Multicast Listener Discovery (MLD) for IPv6 (RFC 2710) Stateless address auto-configuration DHCP v6 Server for IPv6 Clients on LAN DHCP v6 client for WAN connectivity Internet Control Message Protocol (ICMP) v6 Static IPv6 Routing Dynamic IPv6 Routing with RIPng
Security	Stateful packet inspection (SPI) firewall Port forwarding and triggering Firewall Access Control Lists and Content Filtering Denial-of-service (DoS) prevention MAC-based wireless access control Static URL blocking or keyword blocking Schedule-based Internet access policy HTTPS web access to the device manager username/password complexity enforcement Self-signed SSL certificate Import and export certificate using Privacy-Enhanced Mail (PEM) format
VPN	5 IPsec tunnels using Cisco QuickVPN client 5 PPTP tunnels for remote client access Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec
Quality of service (QoS)	802.1p port-based priority on LAN port, application-based priority on WAN port 4 queues Differentiated Services Code Pointsupport (DSCP) Class of Service (CoS) Bandwidth Management for service prioritization
Management	Simple Network Management Protocol (SNMP) v3 Event logging: local, syslog, email alerts Firmware upgradable through web browser Imported/exported configuration in text format Simple browser-based configuration (HTTP/HTTPS) Bonjour and Universal Plug and Play (UPnP) Network diagnostics: Ping, Traceroute, and DNS Lookup
Performance	NAT throughput: 90 Mbps 5000 concurrent sessions VPN throughput: 5Mbps
Wireless LAN Specifications
WLAN hardware	IEEE 802.11n standard-based access point with 802.11b/g compatibility Radio and modulation type: 802.11b: direct sequence spread spectrum (DSSS) 802.11g/n: orthogonal frequency division multiplexing (OFDM) 2 omnidirectional 1.8 dBi gain fixed external antennas Operating channels: 11 in North America 13 in most of Europe Automatic channel selection Transmit power: 802.11b: 17 dBm +/- 1.5 dBm 802.11g: 15 dBm +/- 1.5 dBm 802.11n: 12.5 dBm +/- 1.5 dBm Receiver sensitivity: -87 dBm at 11 Mbps -71 dBm at 54 Mbps -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40
Wireless Domain Services (WDS)	Allows wireless signals to be repeated by up to 3 compatible devices
Wi-Fi Multimedia (WMM)	WMM with QoS (802.11e), WMM power save (WMM-PS)
Active WLAN clients	Up to 32 clients
Service Set Identifiers (SSIDs)	Up to 4 separate wireless networks
Wireless isolation	Wireless isolation between clients
WLAN security	Wireless isolation between clients WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise
System Specifications

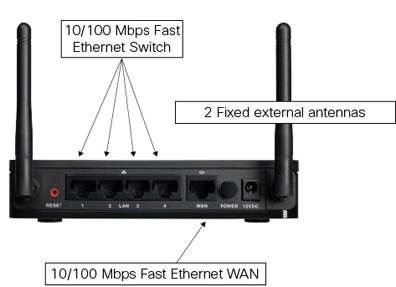

WAN	One 10/100 Mbps Fast Ethernet WAN port
LAN	Four 10/100 Mbps Fast Ethernet LAN ports
WLAN	Built-in 802.11n wireless access point
LEDs	Power, WPS, WAN, Wireless, LAN (ports 1-4)
Switch	Power button (on/off)
Physical dimensions and weight	W x D x H = 5.91 in. x 5.91 in. x 1.18 in. (150 mm x 150 mm x 30 mm) Weight: 0.61 lb (0.3 kg)
Power	12V 1A
Certifications	FCC Class B CE IC cUL Wi-Fi
Environmental operating range	Operating temperature: 0° to 40°C (32° to 104°F) Storage temperature: –20° to 70°C (–4° to 158°F) Operating humidity: 10% to 85% noncondensing Storage humidity: 5% to 90% noncondensing

Documentation:

Download the Cisco Small Business RV110W Wireless-N VPN Firewall Datasheet (PDF).
